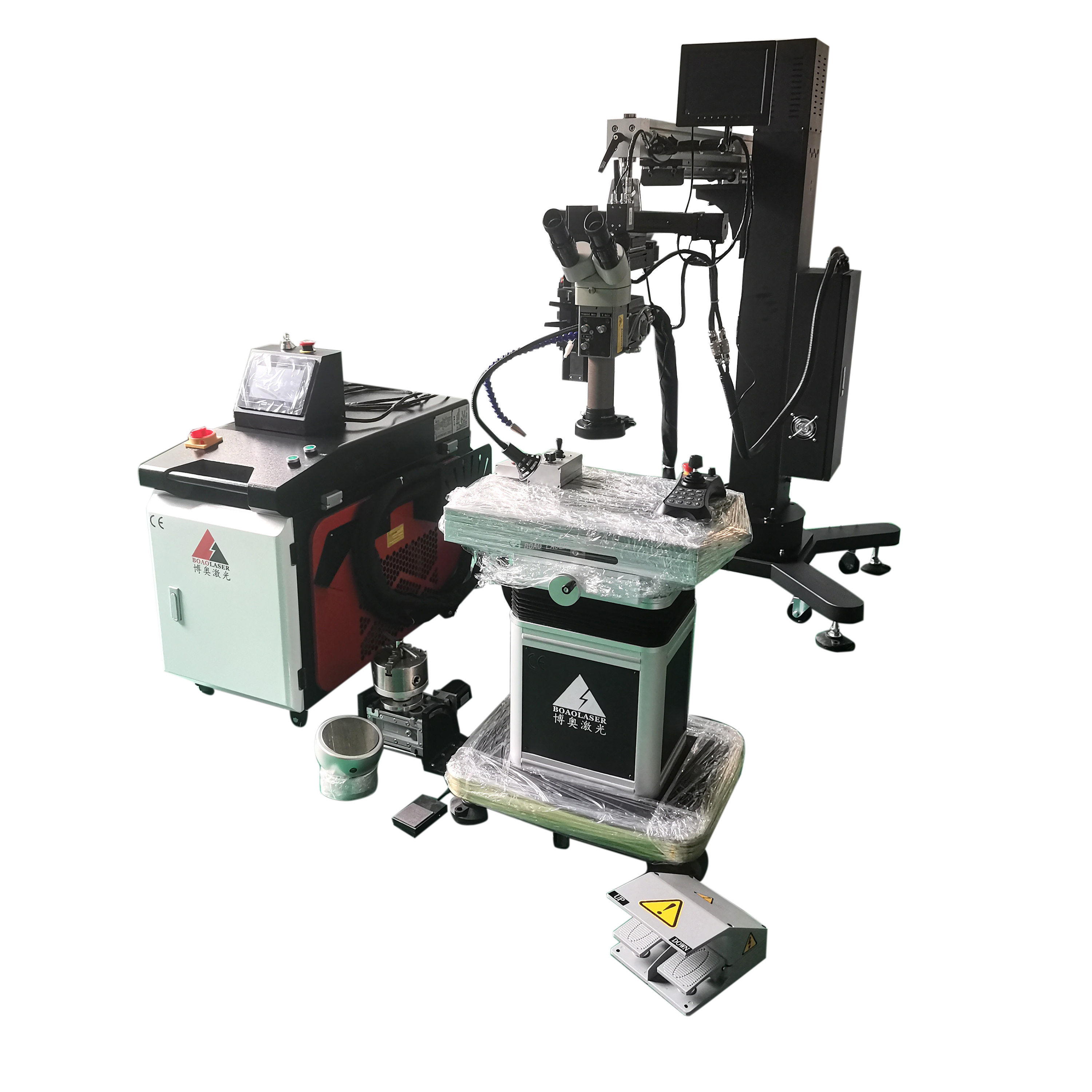

BMII -F Mold Laser Welding Machine

This model adopts fiber tranmission laser
BMII Series Mould Laser welding was designed by our engineers and special for the big sizes mould repair.
The mould size Max Diameter is 3000mm around can be repaired by this laser welding machines.

Quantity:

6

Service:
1: 1 year Warranty time for free any spare parts and whole life Technology Supports .
2: 24 hours Online Service
3: 10 Technical Engineers Team For you .
4: Technical Engineers Overseas Service .
5. Training &Operation & Maintenance Video in English .
Introduction
The laser deposition welding system (laser mould welder) is specially designed for the mould industry and used in repairing of precision moulds, such as mould manufacture for digital products, mobile phone, toy, automobile and motorcycle, and molding industry. Through the repairing of moulds, it is possible to reuse the moulds, save the production cost and improve the working efficiency significantly. This technology can also be used to modify the design or size of moulds to reduce the development period.
Features
The working principle of this laser deposition welding system is to use laser high thermal energy and the melting technology in spot to process the welding and repairing of minute parts. It makes up the shortage of traditional hydrogen arc welding in repairing precision surfaces, avoids the two difficulties of thermal strain and after-treatment, and saves the production period of mould.
Advantages
It is specially designed for the mould industry and the technology is imported from Germany. With unique structure design, it is suitable for repairing of large, medium and small moulds.
1.Ceramic converging cavity is imported from the Britain. It is corrosion resistant and high temperature resistant, and has 8-10 years service life. The life of xenon lamp is more than 8 million times.
2.Use the most advanced light shielding system to eliminate the irritation to eyes by light during working.
3.The laser head and optics part can be rotated for 360°, upward/downward lifting and forward/backward pushing, suitable for repairing of large, medium and small moulds.
4.The parameters are controlled by intelligent remote controller, which is simple and convenient.
5.The work bench can be lifted, and moved in three dimensions.
6.The size of light spot can be adjusted.





Technical Parameters;

ModelBMII-F200/BMII-F300/BMII-F400/BMII-F500/BMII-F600
3 Axis stroke of work benchX=300mm, Y=200mm
Bearing of work bench100kg
Device weight400~700kgs
Power supply220v/380v
Laser typeFiber transmission
Laser welding spot dia0.1~0.3mm
Laser wavelength1064nm
Pulse widthless than 20ms
Laser power200w/300w/400w/500w/600w
Pulse energy
80J/90J/100J/110J
Pulse frequency
less than 100hz
laser output focus length
150mm
Laser cooling
water cooling
Protective gasOne line
Welding wire diameter
0.1~1.0mm
Observation systemMicroscope or optional CCD camera


BMII Series  Mould Laser welding was designed by our engineers and special for the big sizes mould repair. The mould size Max Diameter is 3000mm around can be repaired by this laser welding machines.

模具修补焊接样品
