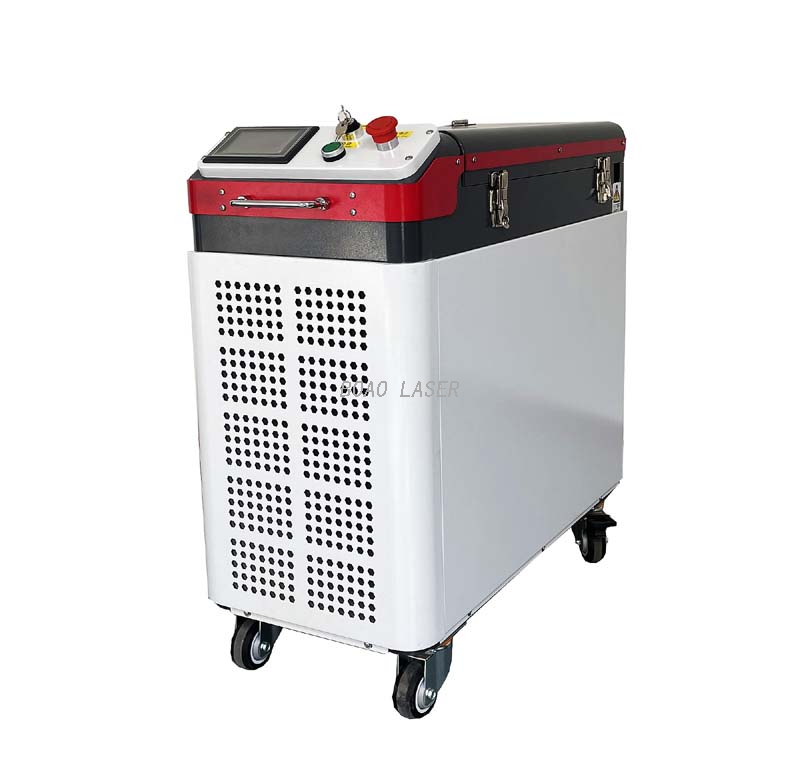

Our Pulse Laser Rust Removal Machine Design
The new generation Laser Cleaning Machine is a high technology product dirt, coating, paint, rust, residue, oxide layer, and other target materials with high efficiency, high performance, low cost and without harm to the base material. It can meet the cleaning requirements of complex modeling and fine positioning in the industrial processing field, achieving a cleaner cleaning effect and a lower overall production cost .It is widely used in industrial area, such as automotive, mechanical, food processing, electronics, historic conservation, ship-building and power generation, etc
This device is built-in 120W ,200W 300W 500W laser generator which is classified as a high power Class IV laser instrument. It may emit 1064nm wavelength, This level of light may cause damage to the eye and skin. Despite the radiation being invisible ,the beam may cause irreversible damage to the retina. Laser safety eyewear is not provided with this instrument, but must be worn at all times while the laser is operational. Use appropriate laser safety eyewear when operating this device.
Our Pulse Laser Rust Removal Machine Design
The new generation Laser Cleaning Machine is a high technology product dirt, coating, paint, rust, residue, oxide layer, and other target materials with high efficiency, high performance, low cost and without harm to the base material. It can meet the cleaning requirements of complex modeling and fine positioning in the industrial processing field, achieving a cleaner cleaning effect and a lower overall production cost .It is widely used in industrial area, such as automotive, mechanical, food processing, electronics, historic conservation, ship-building and power generation, etc
This device is built-in 120W ,200W 300W 500W laser generator which is classified as a high power Class IV laser instrument. It may emit 1064nm wavelength, This level of light may cause damage to the eye and skin. Despite the radiation being invisible ,the beam may cause irreversible damage to the retina. Laser safety eyewear is not provided with this instrument, but must be worn at all times while the laser is operational. Use appropriate laser safety eyewear when operating this device.
Laser power | 120W | 200W | 300W |
Output laser Stabilizer | <3% | <3% | <3% |
Focusing Spot Dia (mm) | 10-100% | 10-100% | 10-100% |
Cleaning Scope Max | 10-100mm | 10 -100mm | 10-80mm |
Wavelength | 1064nm | 1064nm | 1064nm |
Frequency (khz ) | 20-50 | 20-50 | 20-50 |
Focusing Length (mm) | 100-160 | 100-160 | 100-160 |
Fiber Cable (m) | 5 | 5 | 5 |
Laser Head Weight (kg) | 2 | 2 | 2.5 |
Auto Focus (cm) | +-5 | +-5 | +-5 |
Cooling System | Wind | Water Cooling | Water Cooling |
Power Supply | 220V | 220V | 220V |
Working Temperature | 0-40 | 0-40 | 0-40 |
Gross weight (kgs ) | 150 | 180 | 260 |
Laser power | 120W | 200W | 300W |
Output laser Stabilizer | <3% | <3% | <3% |
Focusing Spot Dia (mm) | 10-100% | 10-100% | 10-100% |
Cleaning Scope Max | 10-100mm | 10 -100mm | 10-80mm |
Wavelength | 1064nm | 1064nm | 1064nm |
Frequency (khz ) | 20-50 | 20-50 | 20-50 |
Focusing Length (mm) | 100-160 | 100-160 | 100-160 |
Fiber Cable (m) | 5 | 5 | 5 |
Laser Head Weight (kg) | 2 | 2 | 2.5 |
Auto Focus (cm) | +-5 | +-5 | +-5 |
Cooling System | Wind | Water Cooling | Water Cooling |
Power Supply | 220V | 220V | 220V |
Working Temperature | 0-40 | 0-40 | 0-40 |
Gross weight (kgs ) | 150 | 180 | 260 |
1-Rust Erasing
Sample: angle iron
Base material: Q235
Laser Eraser: Standard Type
Erasing Efficiency: 1800mm²/s
Erasing Effects: surface undamaged and no rust left behind.
2-Paincoat Cleaning
Sample: bending sheet metal
Base material: carbon steel( paintcoat )
Laser Eraser: Standard Type
Erasing Efficiency: 2200mm²/s
Erasing Effects: paintcoat remove completely, no damage to the base material.
1-Rust Erasing
Sample: angle iron
Base material: Q235
Laser Eraser: Standard Type
Erasing Efficiency: 1800mm²/s
Erasing Effects: surface undamaged and no rust left behind.
2-Paincoat Cleaning
Sample: bending sheet metal
Base material: carbon steel( paintcoat )
Laser Eraser: Standard Type
Erasing Efficiency: 2200mm²/s
Erasing Effects: paintcoat remove completely, no damage to the base material.
