Our Fiber Laser Cutting Machine Design

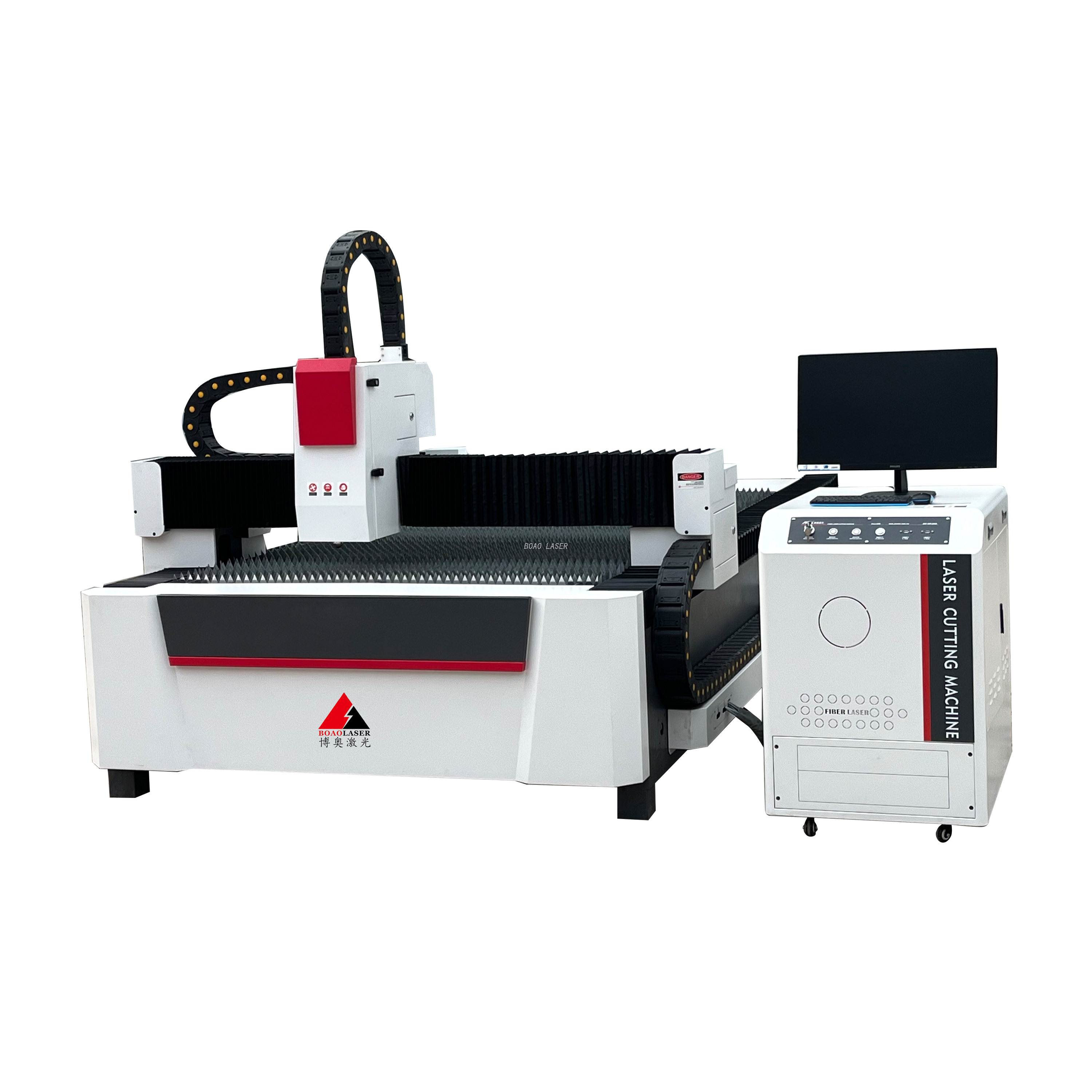

BFC4015 Series Single Worktable Model Fiber laser cutting machine adopts the most sophisticated Germany IPG or SPI or Rofin or Raycus Fiber Laser of China, combining Gantry CNC machine designed by our company and high strength welding body, after high temperature annealing and precision machining by large CNC milling machine. It has good rigidity and stability with precision ball screws, linear guide drive run.
Our Fiber Laser Cutting Machine Worktable Features
Net Single worktable weight : >3.0 Ton, Whole Machines Weight : >4.8 Ton .(2000W-4000W *Worktable Net Weight : 3.8 Ton, Whole Machine weight : 5.4 Tons
8mm square steel tube and 18-20mm steel plate welded machines body .The Worktable can load >1.2 Tons (2000W-4000W can load 2.0 Tons )
Maximum Empty Running Speed Of Worktable : 100M/min (120M/min Optional )
X, Y, Z Axis Orientation Precision:≤±0.03mm/m
X, Y, Z Axis Repeat Precision:≤±0.03mm /m
Worktable Max Load: 1.2-2.0 Tons
Min line width:≤0.15mm
Aluminum Casting Transverse Beam
Laser head of Raytools with Auto Focusing Function
Function Advantages
1. Excellent quality of light beam.
2. Highly cutting speed: the 2 times by co2 laser cutting machine under the same power.
3. Very high stability and efficiency of photoelectric conversion.
4. Very low using cost and maintenance cost.
5. Convenient product operation and maintenance.
6. Very strong soft optical effects: compact volume and structure.
7. Gantry double driving structure, high damping machine tool bed, good rigid.
8.This model adopts imported AC servo system driver and imported transmission system, the moving structure of machine tool adopts imported gear and rack transmission, linear guide track for guiding, ensuring the high speed,high precision and high reliability of equipment.
9. Rack and guide adopt fullly enclosed protective device, which prevents oil free friction movement and dust pollution, enhances using life of transmission parts and ensures the precision of machine tool movement.
10. Professional laser cutting machine, cnc control system, computer operation, can ensure the cutting quality, and more convenient for cutting work.
11. Automatic swiching table configuration, which shortens the standby time, and effectively enhances the working efficiency more than 30%.
12. Fully enclosed protective cover,using safety.(Enclosed Model)
