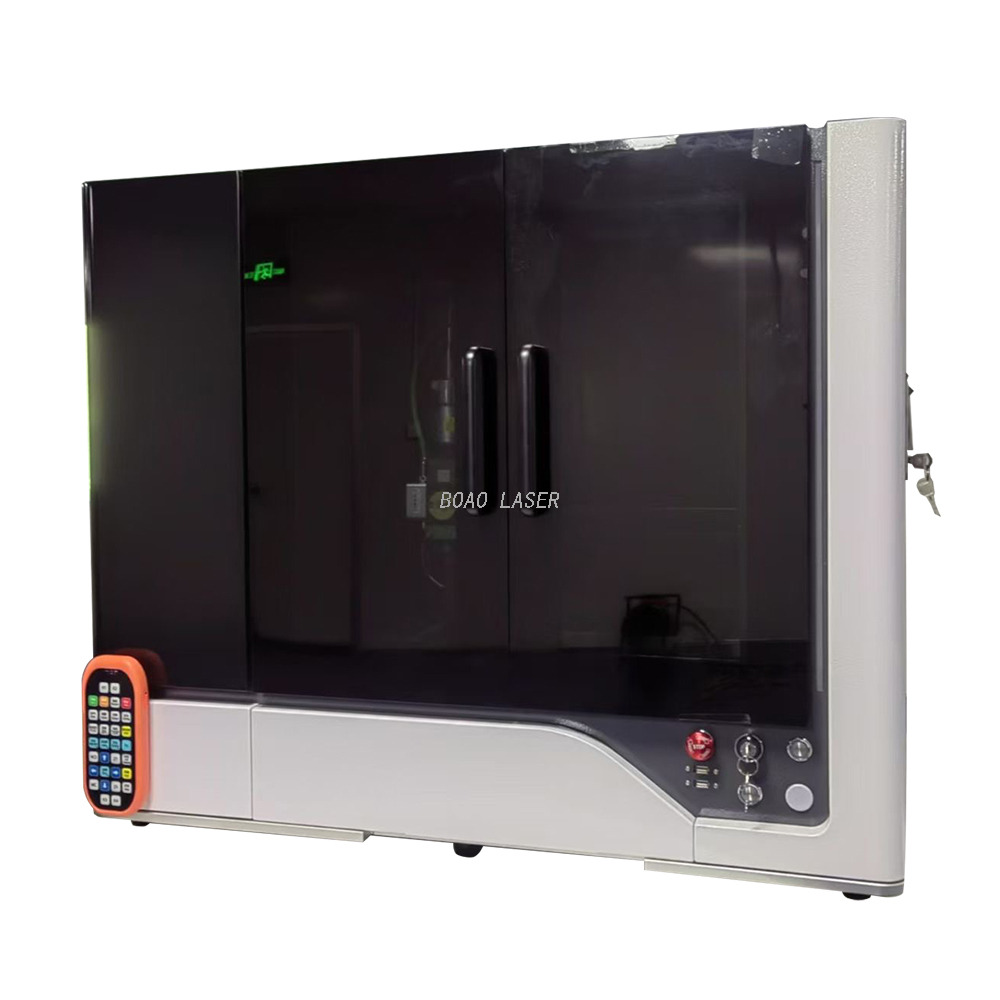

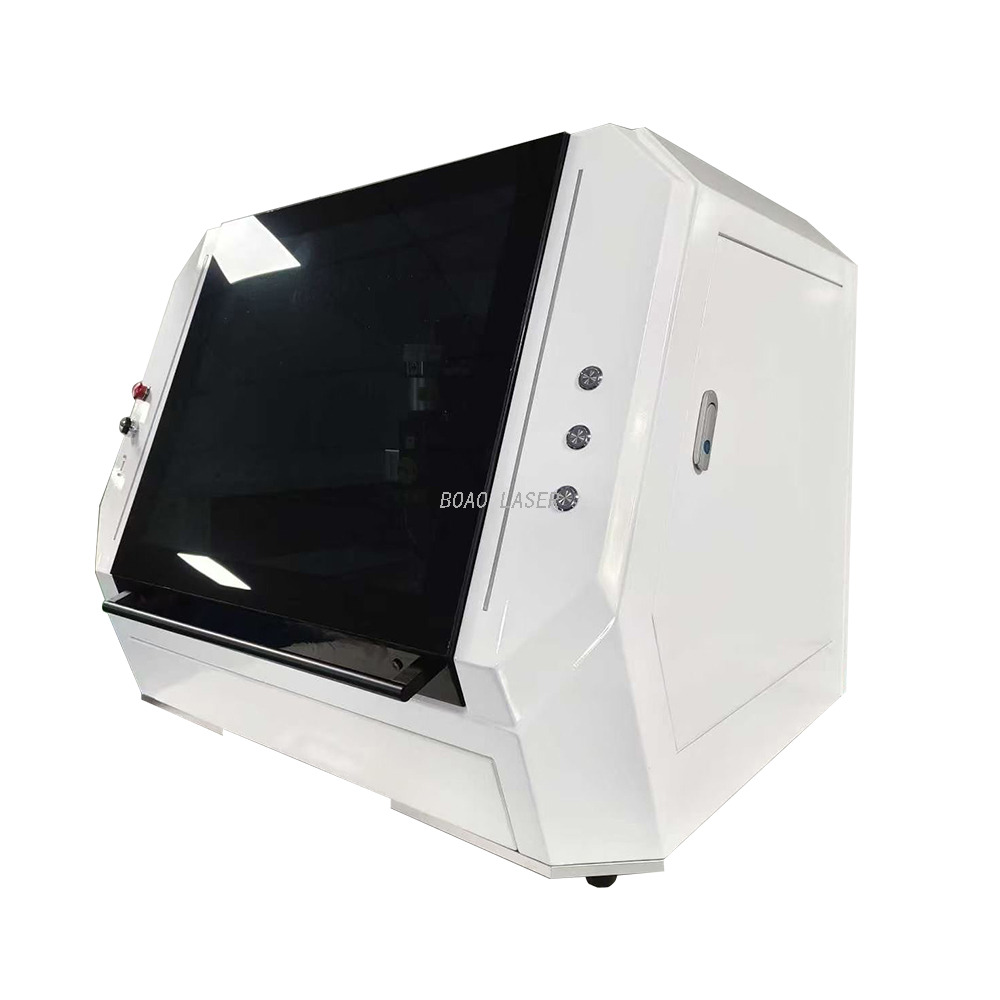

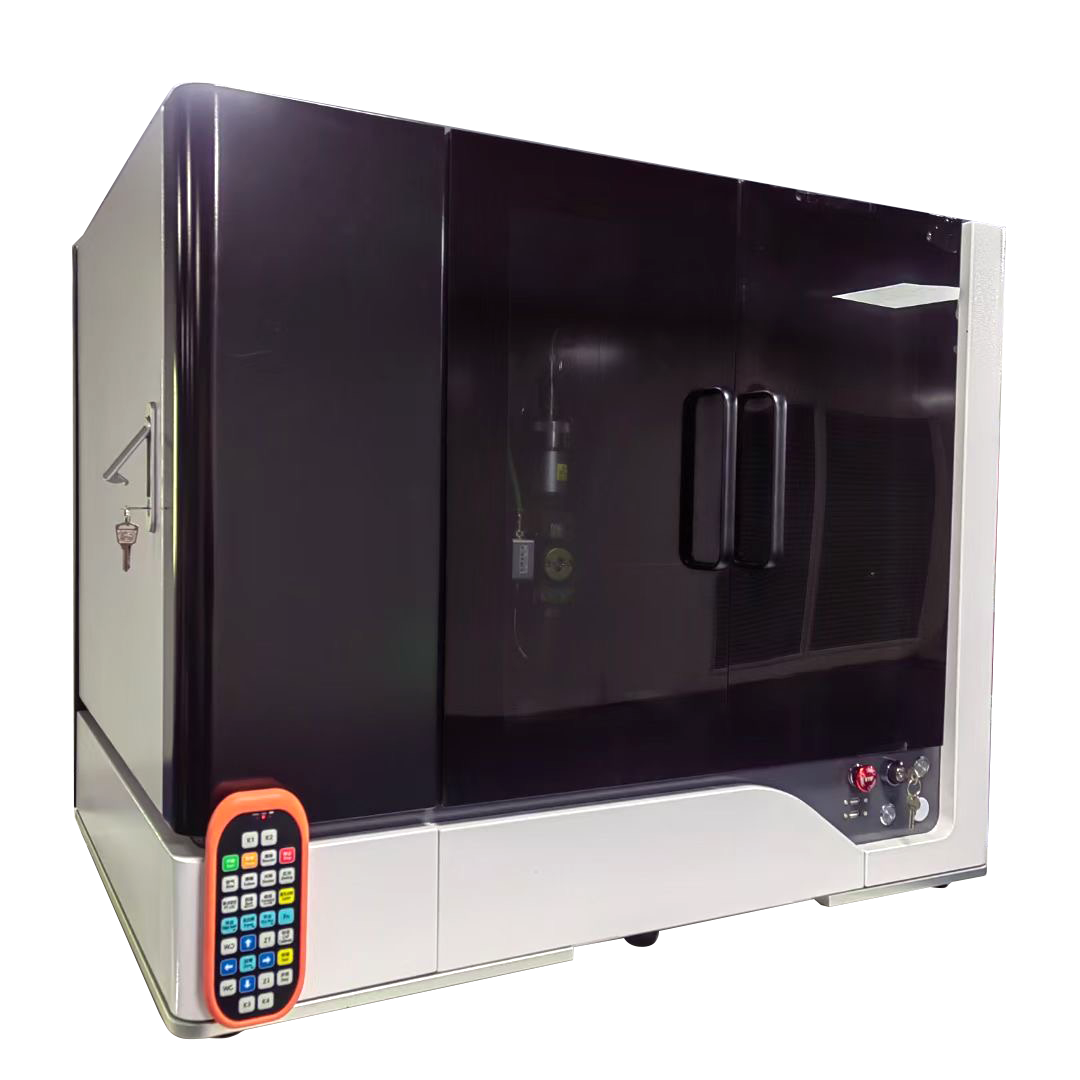

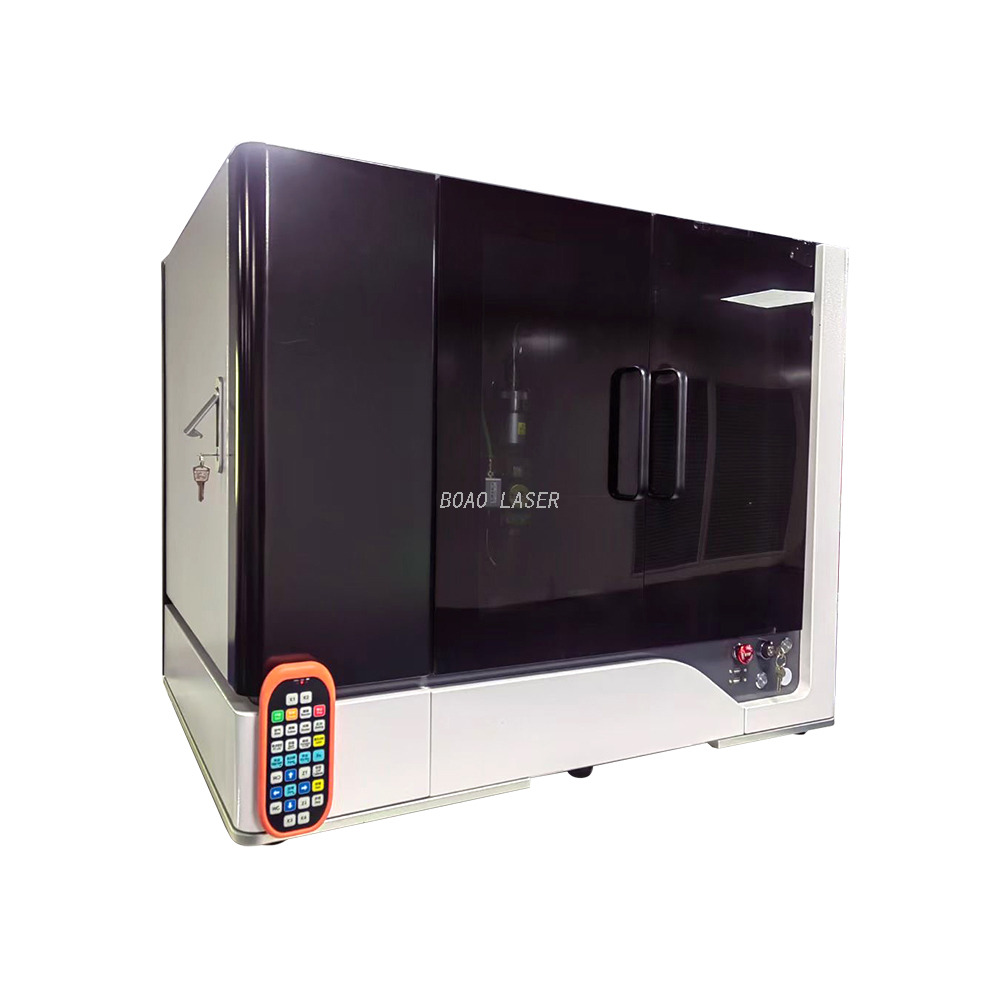

High Precision Fiber Laser Cutting Machine

High Precision Fiber Laser Cutting Machine

   CUTTING SIZE 300*200

*Repeating Precision +-0.02mm /Orientation Precision +-0.03mm/ Cutting accuracy≤±0.02mm

BRIEF :

*Using single-mode high-power fiber laser,

*imported servo cutting head,

*micron linear working platform,

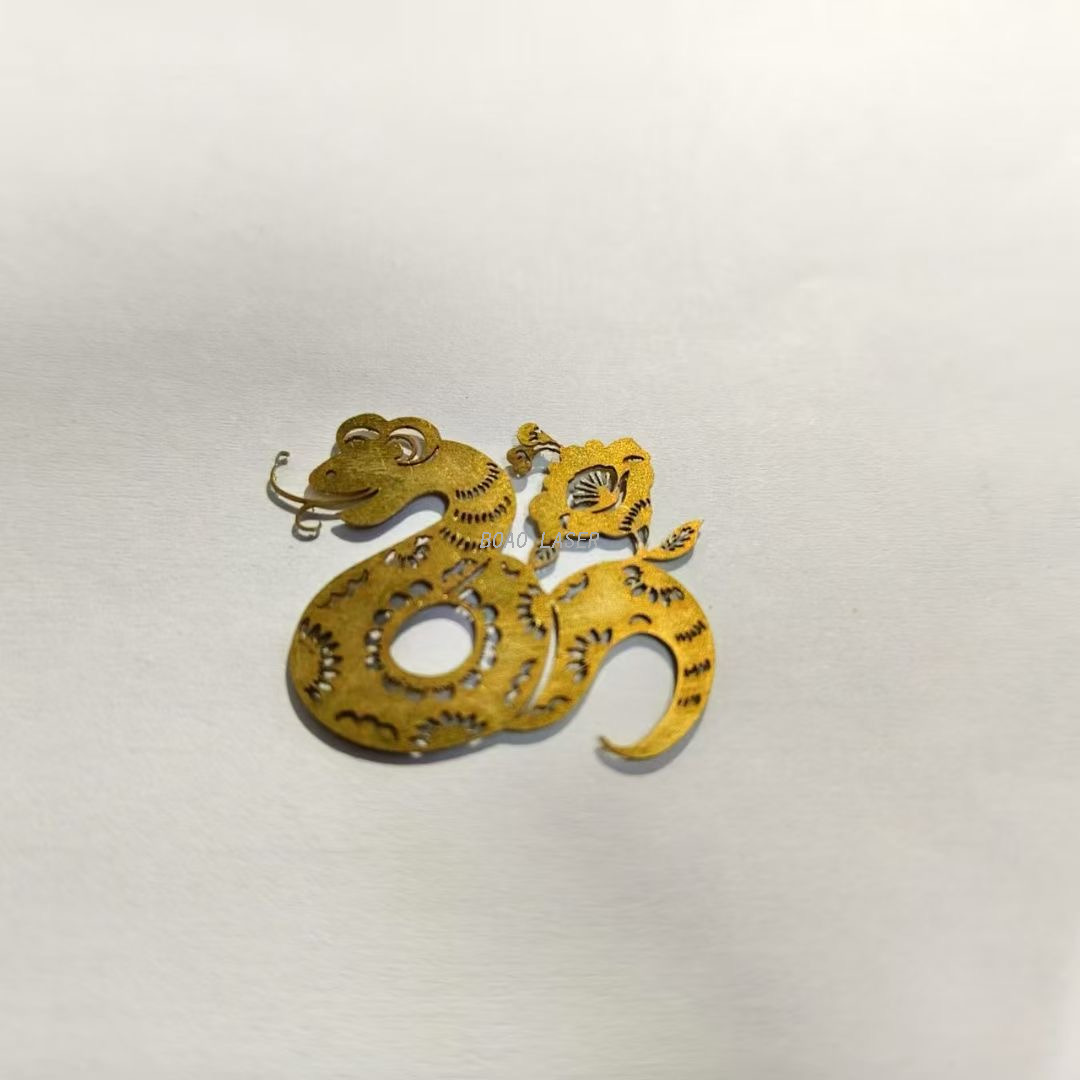

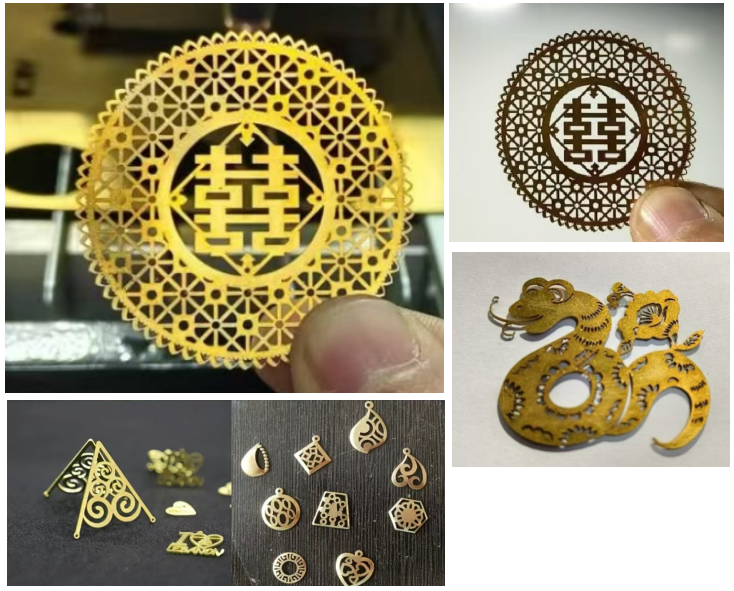

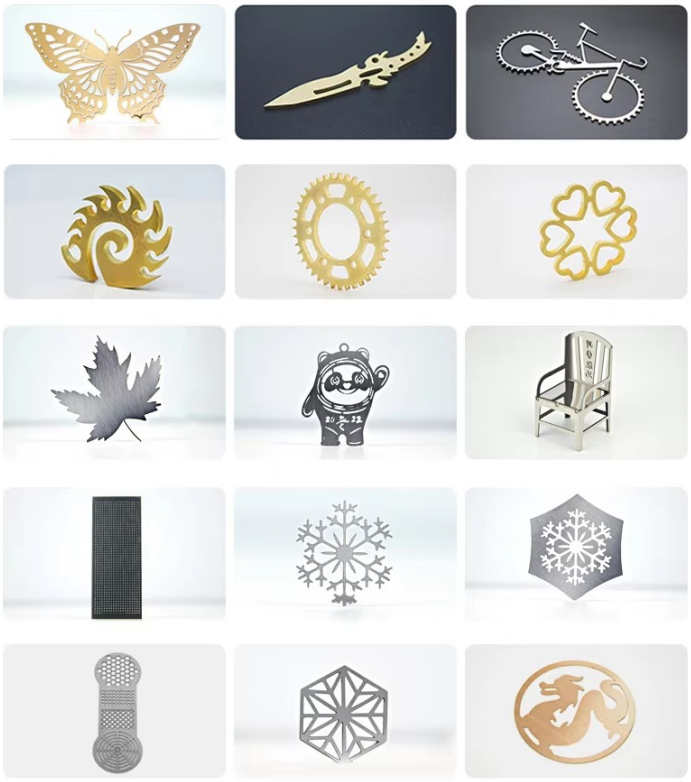

*laser special CNC sleeve processing software to achieve high-speed and high-precision cutting of thin sheet materials (thickness less than 2mm, aluminum, copper, stainless steel, all kinds of ceramics, etc.

*Minimum slit to 0.05mm

*excellent cutting effect, smooth cutting, good verticality, no hanging slag.

*By extending the rotating axis, the round pipe cutting and drilling can be realized.

FEATURE :

1. Choose single mode fiber laser, excellent reflection isolation function, diffraction limited beam quality, precision cutting preferred

2. High precision servo cutting head, autofocus, fast response speed, high precision

3. Precise optical path and beam control structure, excellent beam quality and spot control

4. Micron linear dual drive platform, high stability, acceleration above 1G

5. High precision 4-axis control system, excellent machining path optimization function and nesting machining function

6. High precision paraxial visual positioning system, supporting parts secondary positioning processing

7. High flatness marble platform, fully enclosed structure, long-term stability

8. Good cable management and dust removal design, long-term maintenance free

9. The minimum slit is 0.05mm, the processing accuracy is ±0.01mm, the cutting effect is excellent, the cutting is smooth, the verticality is good, and there is no hanging slag. By extending the rotating axis, the round pipe cutting and drilling can be realized.
