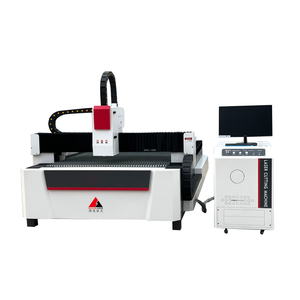

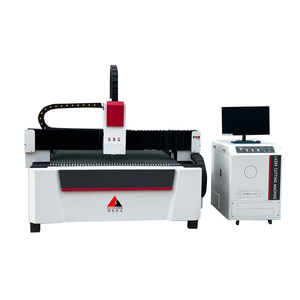

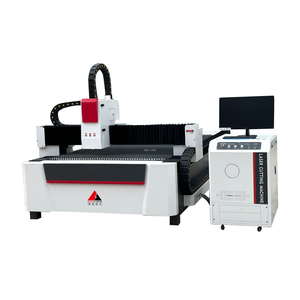

BFC3015 Tube&Plate Cutting Series

3000x1500mm/4000x2000 mm  Steel Pipe Fiber Laser Cutting Machines mainly Cutting Stainless Steel , Carbon Steel , Aluminum, Brass , Alloy Steel etc. such as Kitchen Ware, Chassis and Cabinet,Metal Pipe,Lamp&Lanterns,Metal Ware,Hardware,Precision Machinery,Auto Parts,Elevator,Nameplates,Advertisement,Electronics,Toys and other Industries.
Laser Power:1KW-30KW to meet different thickness cutting application.
Availability:
Quantity:

微信图片_20210618102702 复制

Introduction of BFC model

  • BFC SERIES Open Type Single Worktable Model Fiber laser cutting machine equip Rotating Worktable to cutting Steel Pipes produdcts and it  adopts the most sophisticated Germany IPG or SPI or Rofin or Raycus Fiber Laser of China, combining Gantry CNC machine designed by our company and high strength welding body, after high temperature annealing and precision machining by large CNC milling machine. It has good rigidity and stability with precision ball screws, linear guide drive run.

  • BFC SERIES fiber laser cutting machine produced by BOAO LASER adopts international advanced 1000W/2000W/3000W/4000W/6000W/8000W/12KW/20KW/30KW... power fiber laser from IPG ,ROFIN laser of Germany, imported high-precision ball screw, linear guide way and other high efficient and high precise drive mechanism. The precise CNC fiber laser cutting machine integrates imported servo motor with advanced CNC system, is high new tech product with a collection made of laser cutting, precise machinery, CNC technology and other subjects. It is applied for cutting and shaping of carton steel plate, stainless steel plate, aluminum plate and other metal materials. With high speed, high precision, high efficiency, high cost performance and other features, it’s the first choice in cutting machines for industrial metal processing.


Application industries

Fiber Laser Cutting Machines mainly Cutting Stainless Steel , Carbon Steel , Aluminum, Brass , Alloy Steel etc. such as Kitchen Ware, Chassis and Cabinet,Metal Pipe,Lamp&Lanterns,Metal Ware,Hardware,Precision Machinery,Auto Parts,Eelevator,Nameplates,Advertisement,Electronics,Toys and other Industries...


test


Our Fiber Laser Cutting Machine Worktable Features

  • Net Single worktable weight : >3.0 Ton, Whole Machines Weight : >4.8 Ton .(2000W-4000W *Worktable Net Weight : 3.8 Ton, Whole Machine weight : 5.4 Tons

  • 8mm square steel tube and 18-20mm steel plate welded machines body .The Worktable can load >1.2 Tons (2000W-4000W can load 2.0 Tons )

  • Maximum Empty Running Speed Of Worktable : 100M/min (120M/min Optional )

  • X, Y, Z Axis Orientation Precision:≤±0.03mm/m

  • X, Y, Z Axis Repeat Precision:≤±0.03mm /m

  • Worktable Max Load: 1.2-2.0 Tons

  • Min line width:≤0.15mm


Aluminum Casting Transverse Beam

aluminum beam



Laser head of Raytools with Auto Focusing Function

切割头


Others

001

002










Model

BFC

Processing area(L×W)

3000mm×1500mm

Pipe processing specification

Φ15mm-φ350mm,L=6000mm;



X axis track

2350mm

Y axis track

3050mm

Z axis track

240mm

X,Y axis positioning accuracy

±0.03mm/m

X,Y axis repeat positioning accuracy

±0.02mm/m

X,Y axis max speed

100m/min

X,Y axis max acceleration

1.2G

Max.turning speed

100rpm

Max.load of worktable

1500Kg

Tailings length

≥90mm

Voltage/Power

380V/50HZ  /    17KW

Dimension(L×W×H)

7600mm×3500mm×1700mm


  • Fiber Laser Cutting Machines mainly Cutting Stainless Steel , Carbon Steel , Aluminum, Brass , Alloy Steel etc. such as Kitchen Ware, Chassis and Cabinet,Metal Pipe,Lamp&Lanterns,Metal Ware,Hardware,Precision Machinery,Auto Parts,Eelevator,Nameplates,Advertisement,Electronics,Toys and other Industries...

121323

切割样品
