Large Glass Laser Sandblasting Machine

Glass laser sandblasting drilling machine is a high-end equipment that combines laser precision processing with sandblasting technology. It is specially used for high-precision drilling, cutting, etching and other processing on glass (including ordinary glass, tempered glass, sapphire glass, etc.). This technology is widely used in electronic display, architectural decoration, automotive glass, optical devices and other fields.
Availability:
Quantity:
  • BFC

  • BOAO

Glass Laser Sandblasting & Drilling Machine

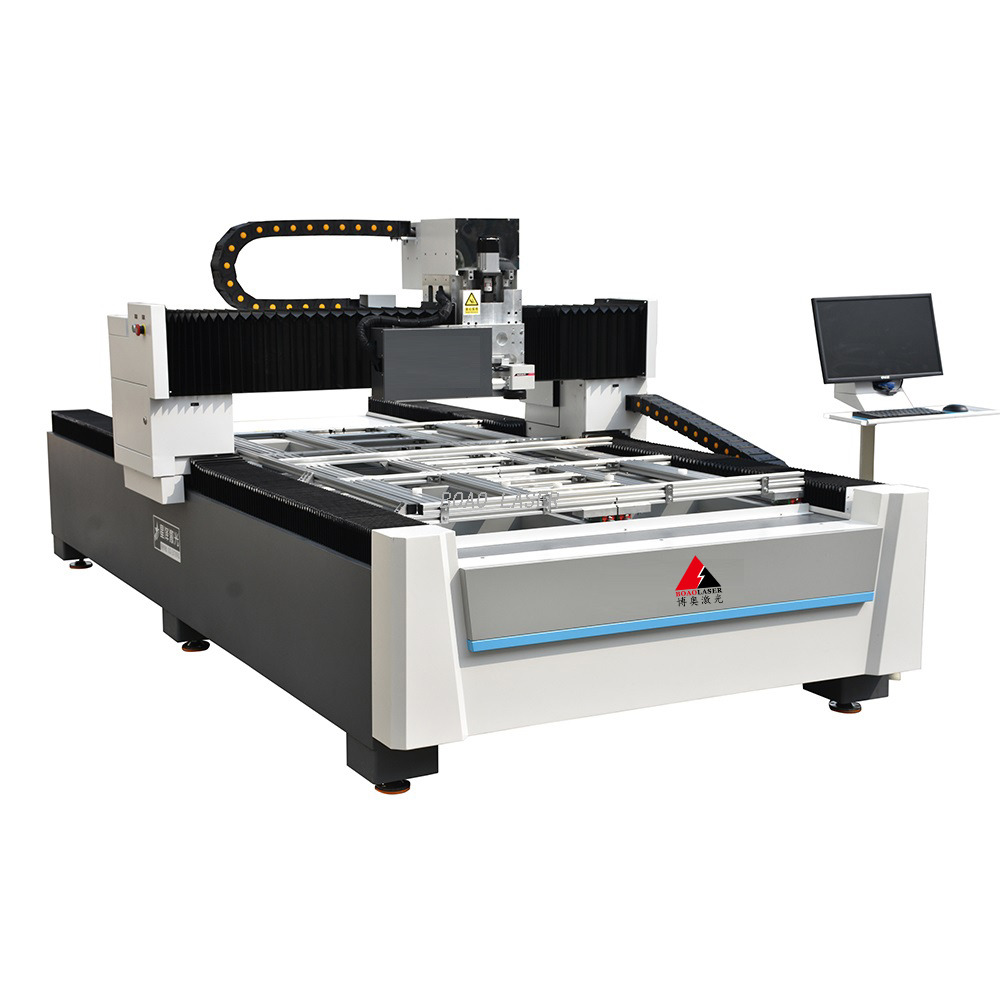

➤ Machine Photo


1-24121P92319456 拷贝

2400*1200*160mm


  1. The large-format intelligent mirror laser sandblasting machine replaces the traditional etching process. It does not require film pasting, film engraving, or sandblasting. It has a fast engraving speed and is environmentally friendly and pollution-free. It has a low cost of use, no consumables and vulnerable parts, and no need to open a mold. It can be processed as long as there is a drawing. The maximum size that can be sandblasted is 600*600mm, and the sandblasting size can also be customized.


2. Laser sandblasting of smart mirrors is a new type of environmentally friendly and energy-saving deep processing technology (sandblasting, paint stripping, and drilling). It can remove the protective paint of smart mirrors and painted glass at one time and achieve a frosted effect. It is fast and does not damage the mirror and glass surfaces. After processing, the mirror is crystal clear without residue. Whether it is silver or copper coating, it can achieve fast laser sandblasting.


Model

Glass laser sandblasting & drilling machine

Specs

120W

Size

3000*2100*1800mm

Weight

900KG

Working mode

Fiber laser moving engraving

Scope of work

2400*1200*160mm

Power supply

380V 50Hz-60Hz

Working environment

±5-35℃

Packaging size

3200*2250*1850mm

Packing weight

1100KG

Total power

6KW

Laser type

Fiber laser

Laser power

120W

Laser length

1064nm

Mechanical Repeatability


≤±0.25mm

Engraving range


1200*2400mm

Laser Repeatability

≤±0.002mm

Engraving line speed

≤12000mm/s

PC

Win7/win10

Single marking range

110*110mm

Cooling system

Water cooling

Theoretical laser lifetime

100000h

motion system

Professional new generation laser control system & high precision servo motion system

Graphics format

EPS/DXF/PLT-CDR/Al/AC6

Software

AutoCAD、CorelDRAW、Al、JD


03ee8e869d109882d5af73a9421ae86
