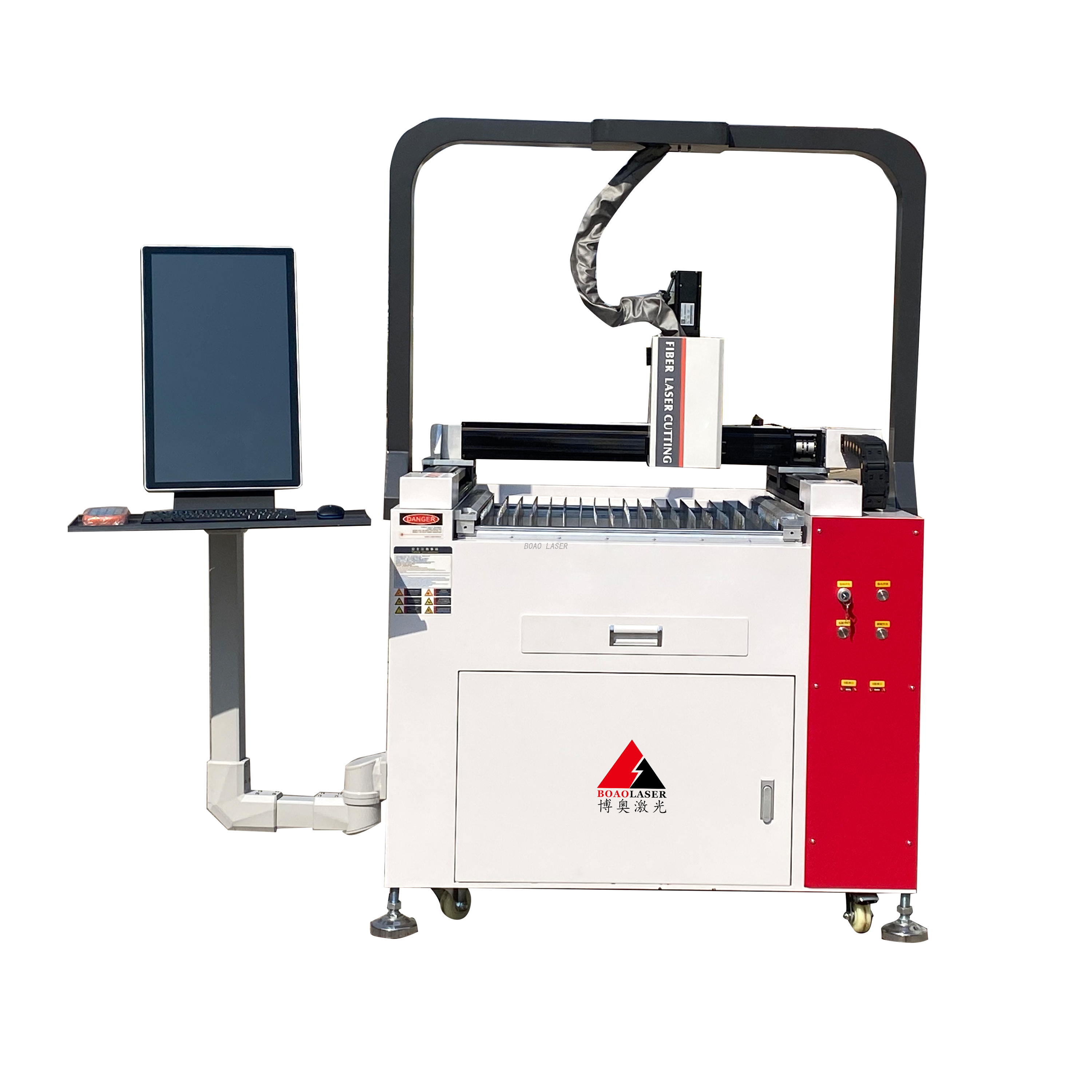

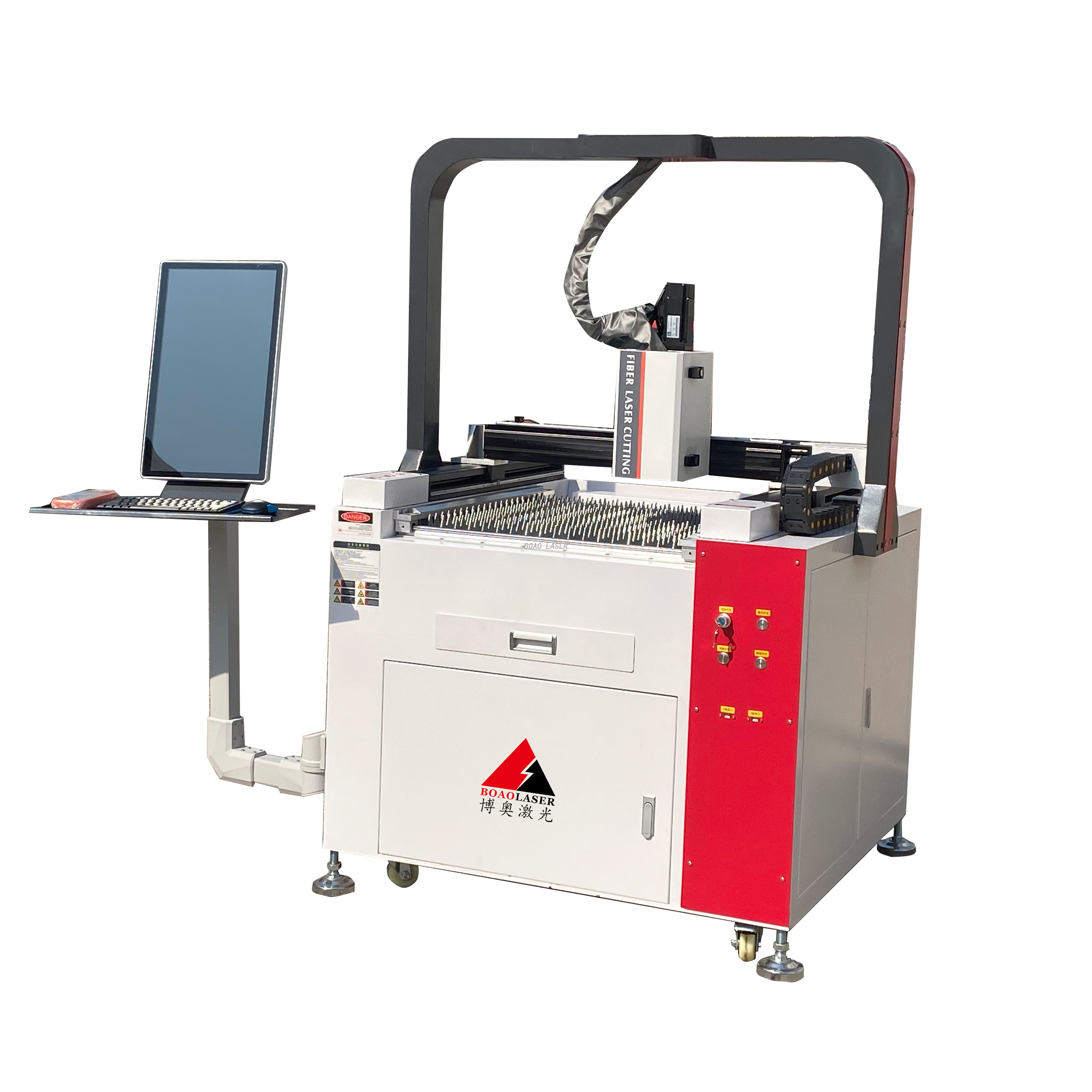

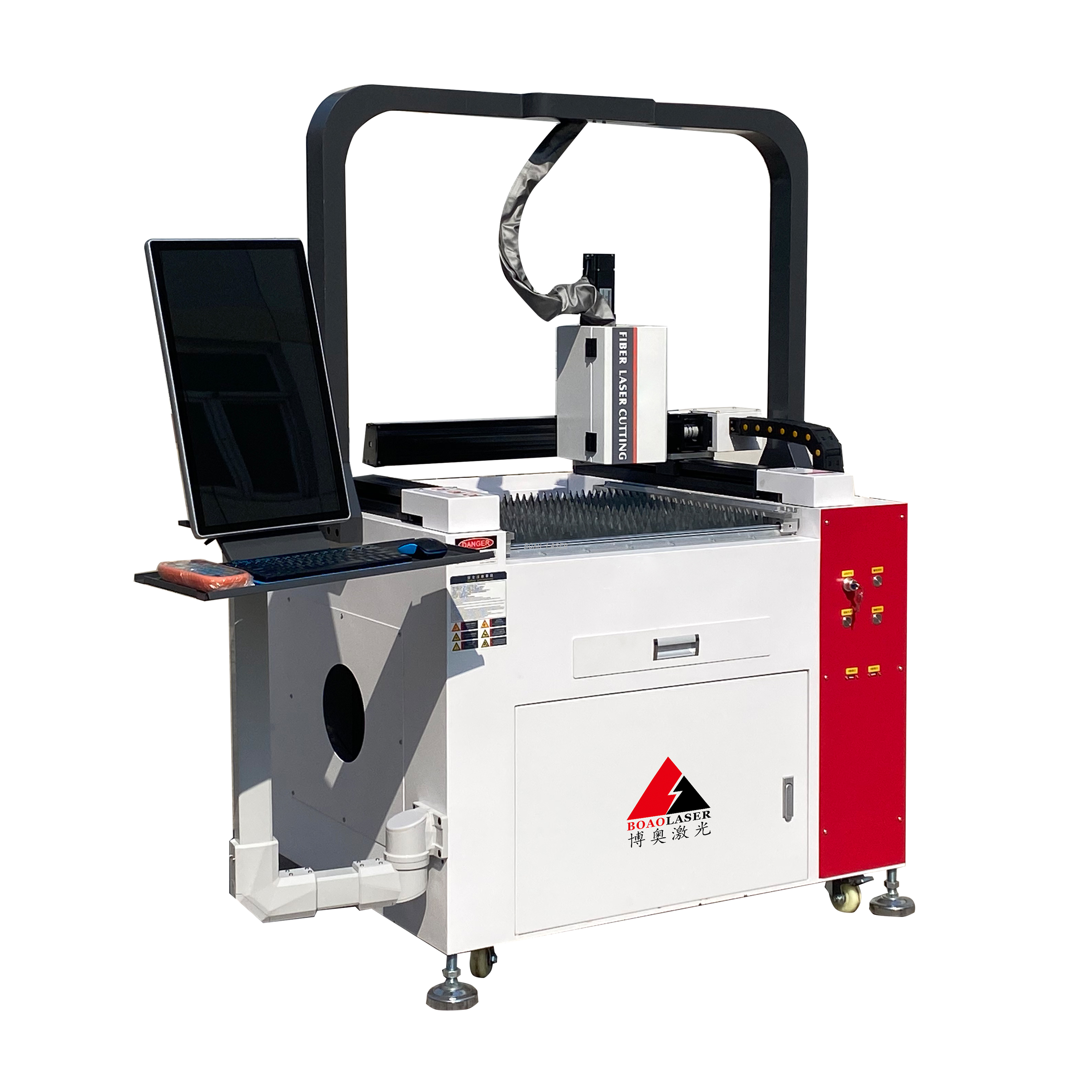

High Precision Fiber Laser Cutting Machine
High Precision Fiber Laser Cutting Machine
Technical Parameters
Model | BFC SEIRES | ||||
Laser Type | Imported Original Fiber Laser | ||||
Laser Wavelength | 1060nm | ||||
Laser Maximum Power | 1000W | 1500W | 2000W | ||
Max. Cutting thickness | ≤8mm | ≤15mm | ≤20mm | ||
Total Power Consumption | <14KW | <18KW | <22KW | ||
Working Size | 600X400MM / 800X800MM / 1300X900MM | ||||
Max.cutting speed | 0-30m/min(Depending on the material and thickness) | ||||
X, Y, Z Axis Orientation Precision | ≤±0.05mm/m | ||||
X, Y, Z Axis Repeat Precision | ≤±0.03mm /m | ||||
Min line width | ≤0.15mm | ||||
Maximum Empty Running Speed | 120m/min | ||||
Driving way | Imported servo motor | ||||
Transmission way | X ,Y axis by Servo moto | ||||
Worktable Max Load | 1600 KGS | ||||
Cooling System | Water Cooling | ||||
Continous working time | 24 Hours | ||||
Environment temperature | 0-35°C | ||||
Power requirements | 380V/3 Phases /50Hz or 60Hz |
Technical Parameters
Model | BFC SEIRES | ||||
Laser Type | Imported Original Fiber Laser | ||||
Laser Wavelength | 1060nm | ||||
Laser Maximum Power | 1000W | 1500W | 2000W | ||
Max. Cutting thickness | ≤8mm | ≤15mm | ≤20mm | ||
Total Power Consumption | <14KW | <18KW | <22KW | ||
Working Size | 600X400MM / 800X800MM / 1300X900MM | ||||
Max.cutting speed | 0-30m/min(Depending on the material and thickness) | ||||
X, Y, Z Axis Orientation Precision | ≤±0.05mm/m | ||||
X, Y, Z Axis Repeat Precision | ≤±0.03mm /m | ||||
Min line width | ≤0.15mm | ||||
Maximum Empty Running Speed | 120m/min | ||||
Driving way | Imported servo motor | ||||
Transmission way | X ,Y axis by Servo moto | ||||
Worktable Max Load | 1600 KGS | ||||
Cooling System | Water Cooling | ||||
Continous working time | 24 Hours | ||||
Environment temperature | 0-35°C | ||||
Power requirements | 380V/3 Phases /50Hz or 60Hz |
Single worktable 600X400mm Fiber Laser Cutting Machines mainly Cutting Stainless Steel , Carbon Steel , Aluminum, Brass , Alloy Steel etc. Such as Kitchen Ware, Chassis and Cabinet, Metal Pipe, Lamp& Lanterns, Metal Ware, Hardware, Precision Machinery, Auto Parts, Elevator, Nameplates, Advertisement, Electronics, Toys and other Industries.
Laser Power:1000w-4000w with it to meet different thickness cutting application.
Single worktable 600X400mm Fiber Laser Cutting Machines mainly Cutting Stainless Steel , Carbon Steel , Aluminum, Brass , Alloy Steel etc. Such as Kitchen Ware, Chassis and Cabinet, Metal Pipe, Lamp& Lanterns, Metal Ware, Hardware, Precision Machinery, Auto Parts, Elevator, Nameplates, Advertisement, Electronics, Toys and other Industries.
Laser Power:1000w-4000w with it to meet different thickness cutting application.
