Single Platform Picosecond Laser Glass Cutting and Splitting Machine

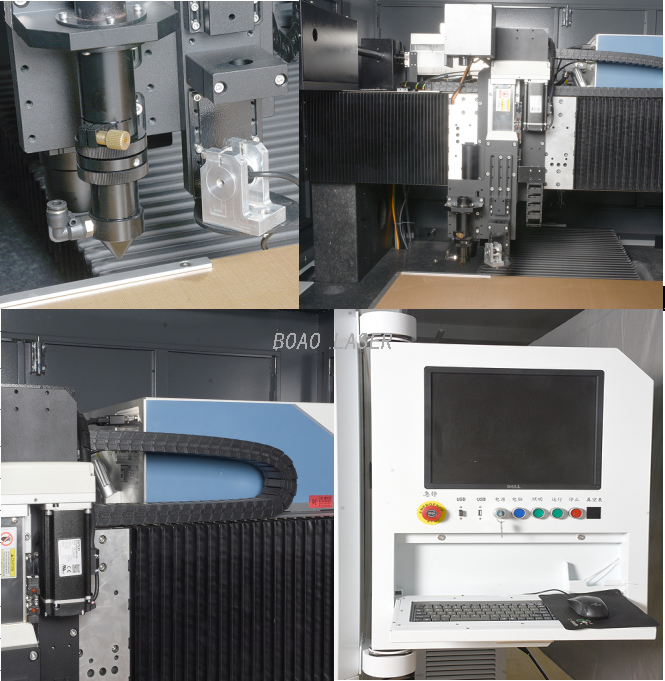

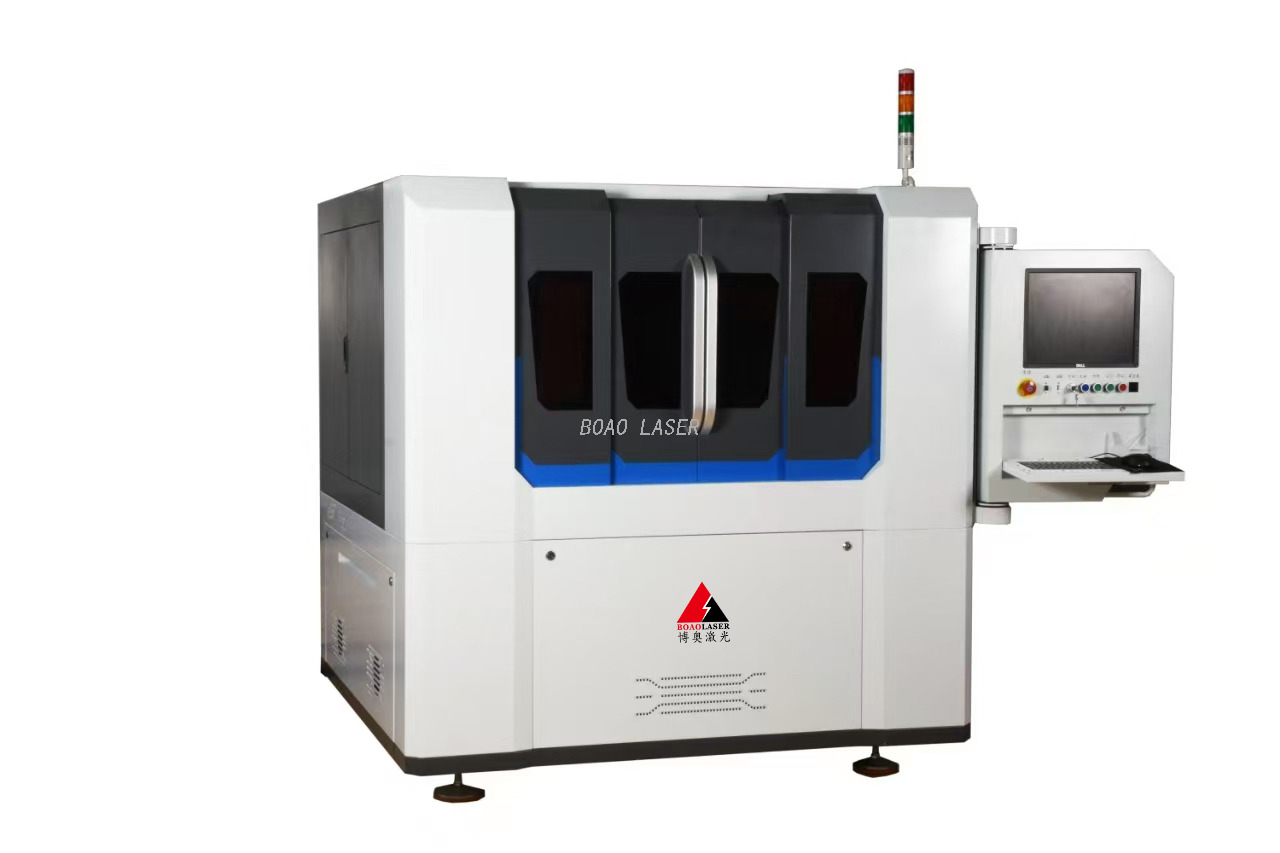

➤ Machine Photo
Picosecond ultra-fast glass laser cutting machine, equipped with self-developed AI control system, with high-end customised picosecond light source and dual-drive linear motor, marble table top is stable and durable. Its cutting and cracking in one process, high precision, cutting error ± 2 microns.
Compared with traditional CNC and waterjet processing, it has significant advantages, especially in the field of shaped, fine and non-destructive cutting. Laser cutting is characterised by non-contact operation, convenient operation, fully automatic operation, no consumables, no pollution, smooth edges and no chipping, low power consumption and high efficiency, with a peak cutting speed of up to 15m/min.

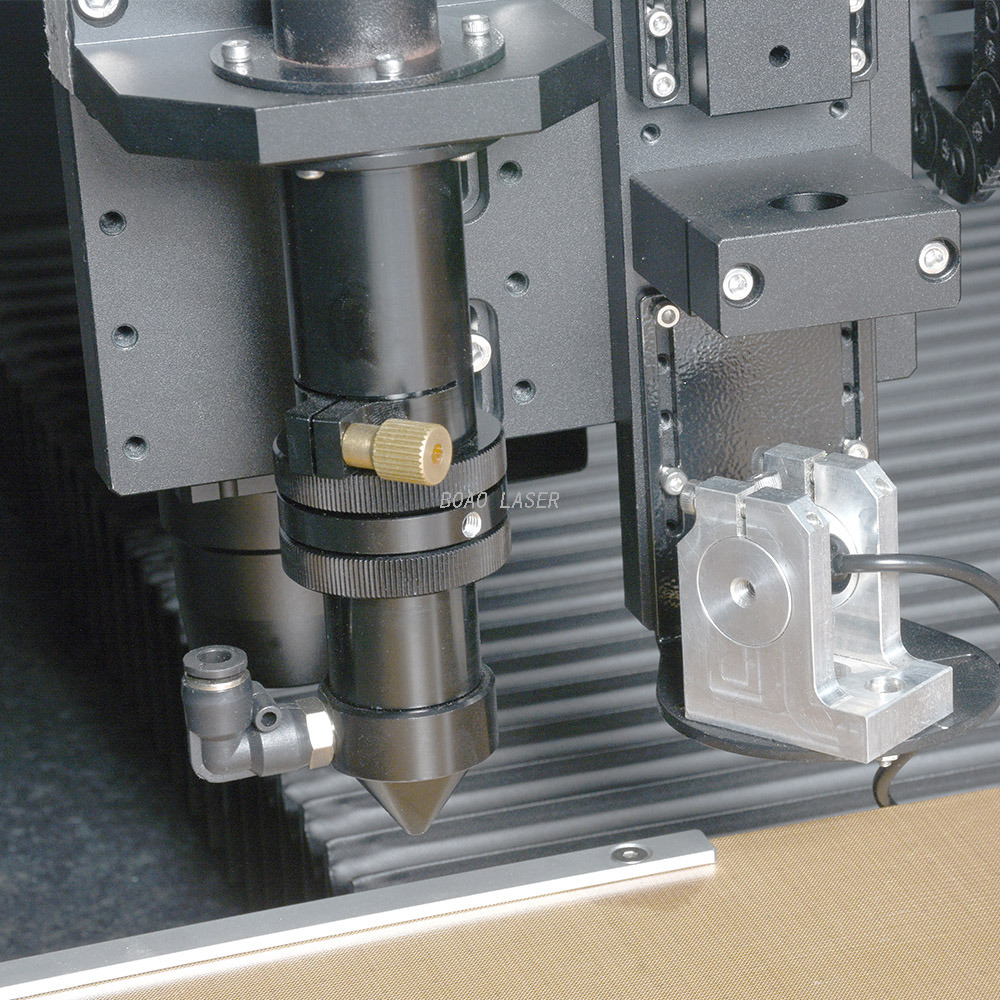

Light source for high-power picosecond laser; self-developed glass cutting head, all imported lenses, spot fine, long depth of focus; X / Y-axis motor using high-end linear motors, Germany 0.1um digital scale; support for cutting splitting as a whole, a separate cut, a separate splitting; motion control comes standard with the PS0 function, uniform control of the laser spot spacing; device to align the CCD and telecentric vision lenses, accurate identification of the circle, Cross and other mark points; electrical components using France Schneider, switching power supply using Taiwan Meanwell; Cutting thickness up to 19mm or less in one cut; motor platform, optical platform base using natural marble, the precision is more guaranteed.
➤ Machines Worktable
Single Platform Picosecond Laser Glass Cutting and Splitting Machine
➤ Machine Photo
Picosecond ultra-fast glass laser cutting machine, equipped with self-developed AI control system, with high-end customised picosecond light source and dual-drive linear motor, marble table top is stable and durable. Its cutting and cracking in one process, high precision, cutting error ± 2 microns.
Compared with traditional CNC and waterjet processing, it has significant advantages, especially in the field of shaped, fine and non-destructive cutting. Laser cutting is characterised by non-contact operation, convenient operation, fully automatic operation, no consumables, no pollution, smooth edges and no chipping, low power consumption and high efficiency, with a peak cutting speed of up to 15m/min.
Light source for high-power picosecond laser; self-developed glass cutting head, all imported lenses, spot fine, long depth of focus; X / Y-axis motor using high-end linear motors, Germany 0.1um digital scale; support for cutting splitting as a whole, a separate cut, a separate splitting; motion control comes standard with the PS0 function, uniform control of the laser spot spacing; device to align the CCD and telecentric vision lenses, accurate identification of the circle, Cross and other mark points; electrical components using France Schneider, switching power supply using Taiwan Meanwell; Cutting thickness up to 19mm or less in one cut; motor platform, optical platform base using natural marble, the precision is more guaranteed.
➤ Machines Worktable
