Small Glass Laser Sandblasting Machine

Glass laser sandblasting drilling machine is a high-end equipment that combines laser precision processing with sandblasting technology. It is specially used for high-precision drilling, cutting, etching and other processing on glass (including ordinary glass, tempered glass, sapphire glass, etc.). This technology is widely used in electronic display, architectural decoration, automotive glass, optical devices and other fields.
Availability:
Quantity:
  • BFC

  • BOAO

Glass Laser Sandblasting & Drilling Machine

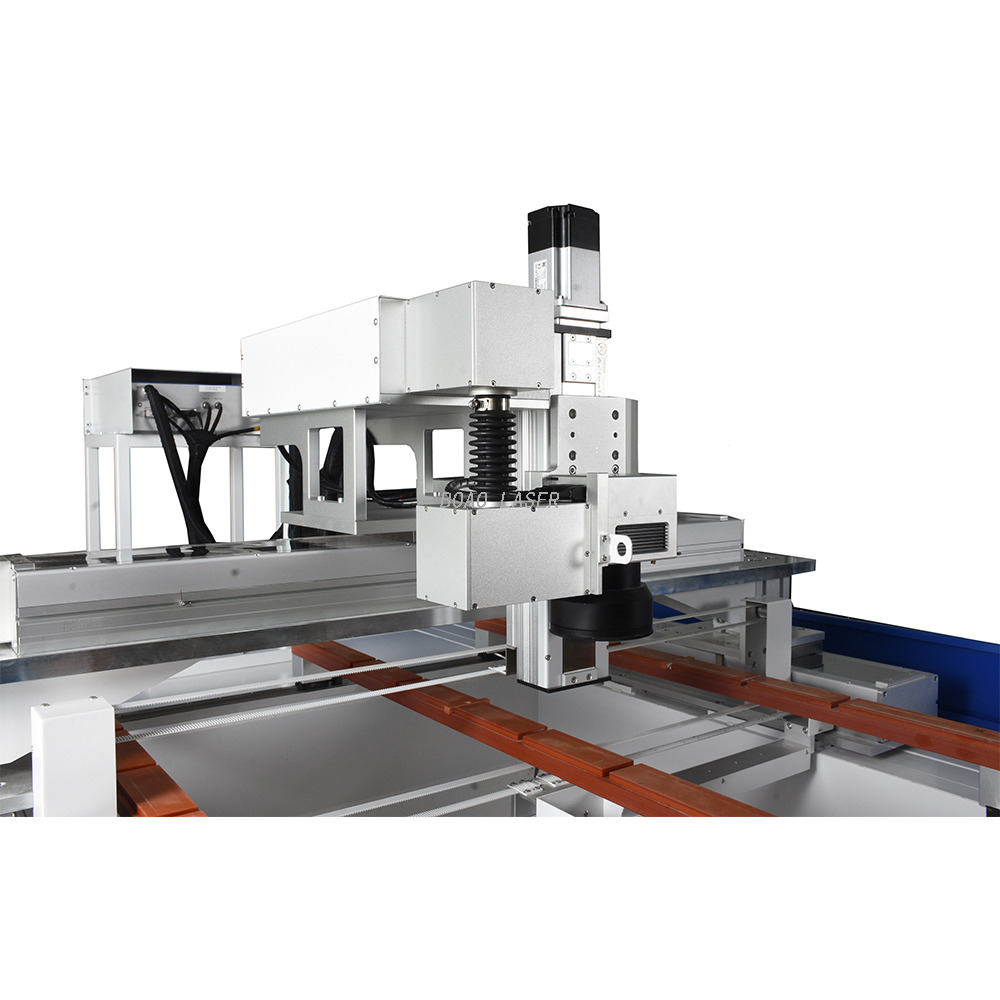

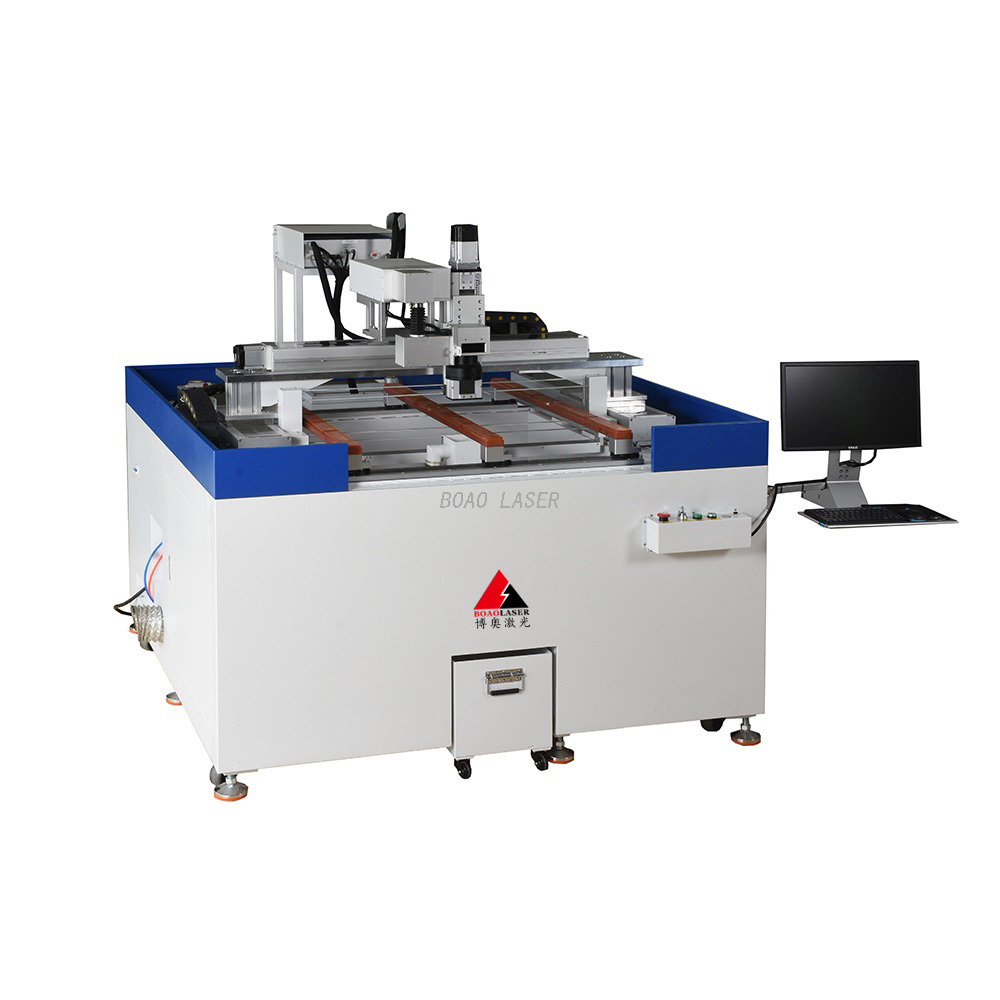

➤ Machine Photo

600毫米尺寸

1. The large-format intelligent mirror laser sandblasting machine replaces the traditional etching process. It does not require film pasting, film engraving, or sandblasting. It has a fast engraving speed and is environmentally friendly and pollution-free. It has a low cost of use, no consumables and vulnerable parts, and no need to open a mold. It can be processed as long as there is a drawing. The maximum size that can be sandblasted is 600*600mm, and the sandblasting size can also be customized.


2. Laser sandblasting of smart mirrors is a new type of environmentally friendly and energy-saving deep processing technology (sandblasting, paint stripping, and drilling). It can remove the protective paint of smart mirrors and painted glass at one time and achieve a frosted effect. It is fast and does not damage the mirror and glass surfaces. After processing, the mirror is crystal clear without residue. Whether it is silver or copper coating, it can achieve fast laser sandblasting.

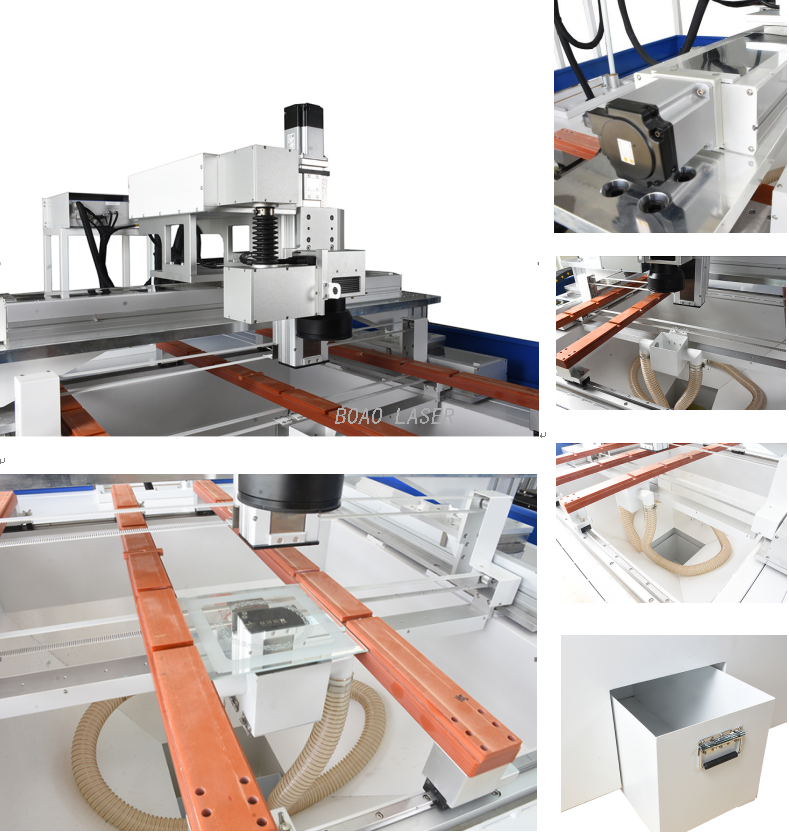

➤ Worktable Platform

6502ffbb3db573c6ebcee31215ccb4a


Model

Glass laser sandblasting & drilling machine

Specs

120W

Size

800*800*900mm

Weight

300KG

Working mode

Fiber laser moving engraving

Scope of work

600*600*100mm

Power supply

220V 50Hz-60Hz

Working environment

±5-35℃

Packaging size

1100*1100*1100mm

Packing weight

380KG

Total power

6KW

Laser type

Fiber laser

Laser power

120W

Laser length

1064nm

Mechanical Repeatability

≤±0.25mm

Engraving range

600*600mm

Laser Repeatability

≤±0.002mm

Engraving line speed

≤12000mm/s

PC

Win7/win10

Single marking range

110*110mm

Cooling system

Water cooling

Theoretical laser lifetime

100000h

motion system

Professional new generation laser control system & high precision servo motion system

Graphics format

EPS/DXF/PLT-CDR/Al/AC6

Software

AutoCAD、CorelDRAW、Al、JD


03ee8e869d109882d5af73a9421ae86
