BOAO

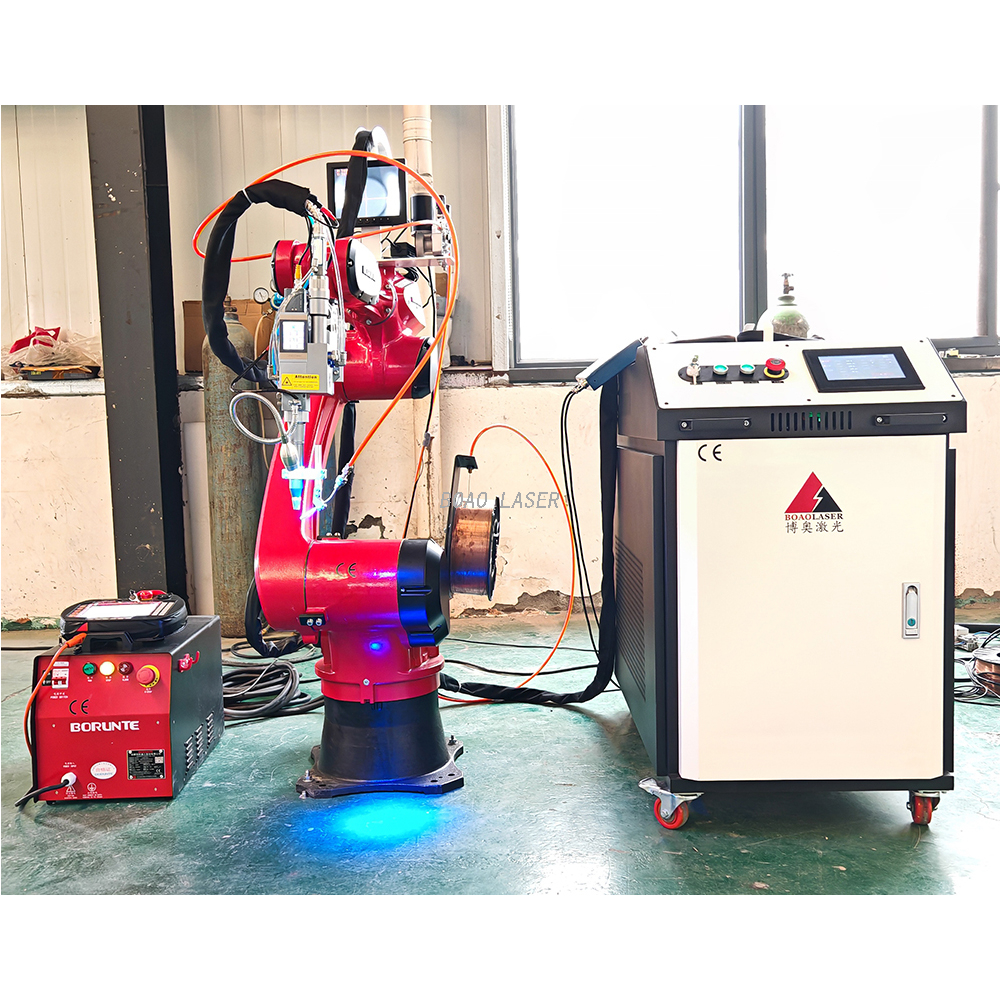

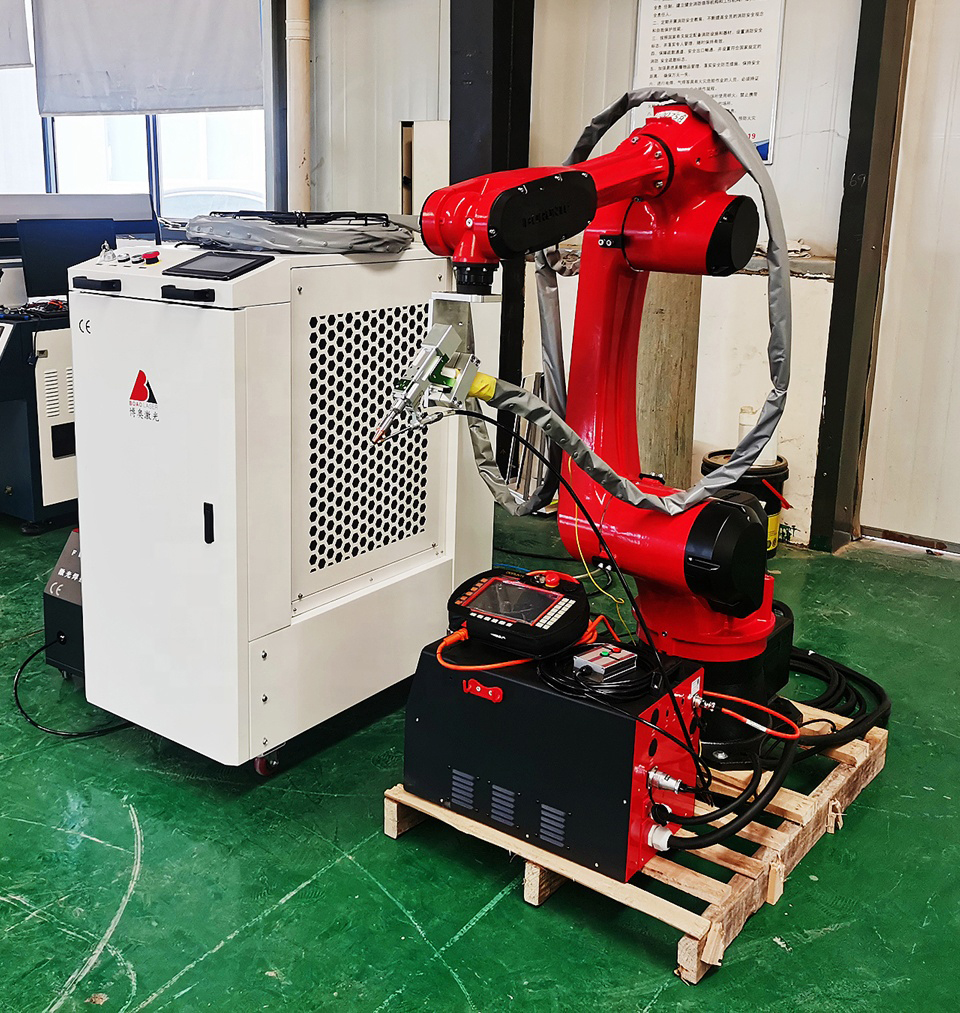

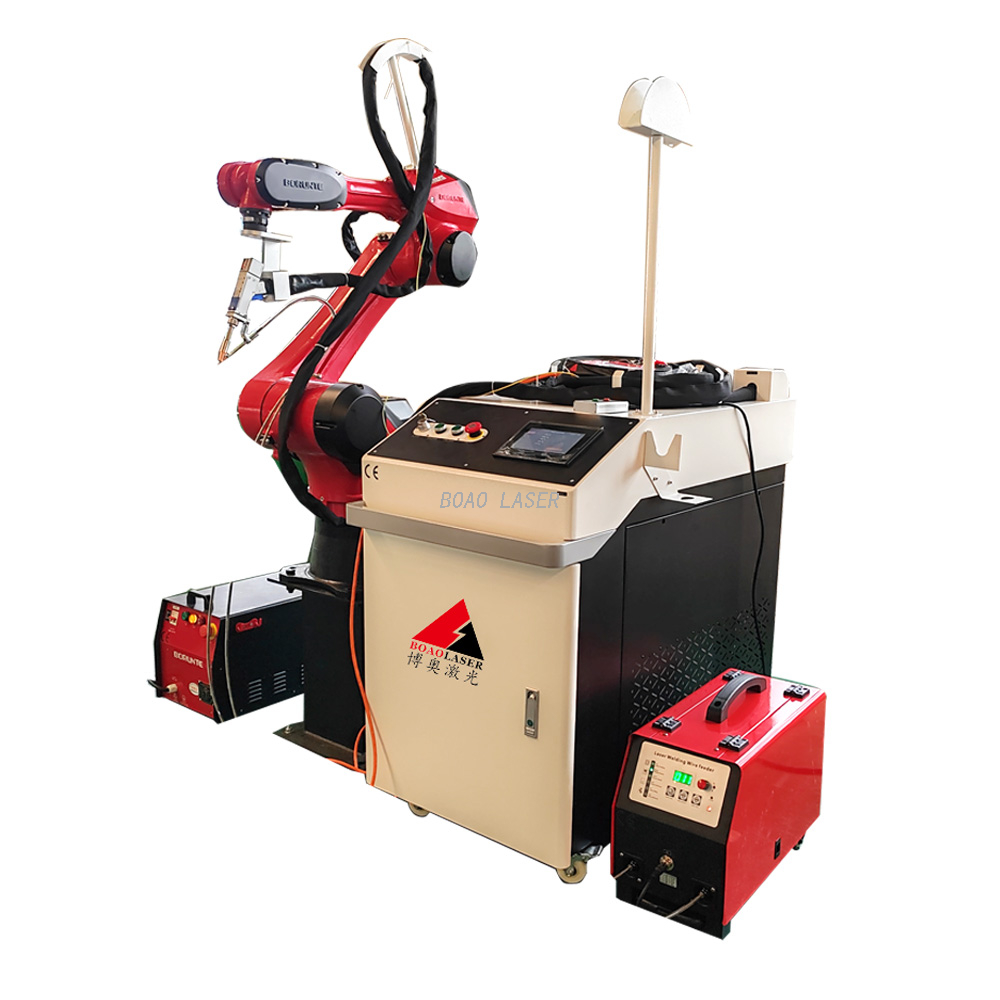

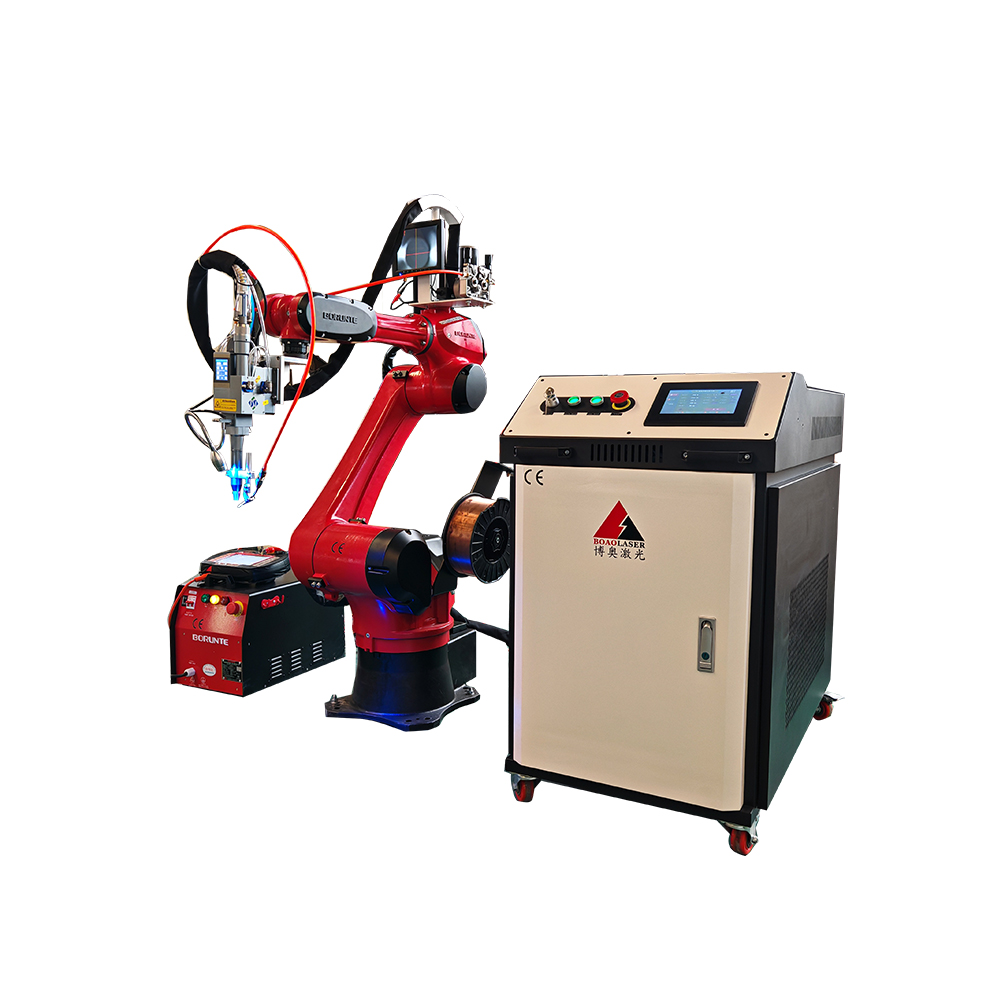

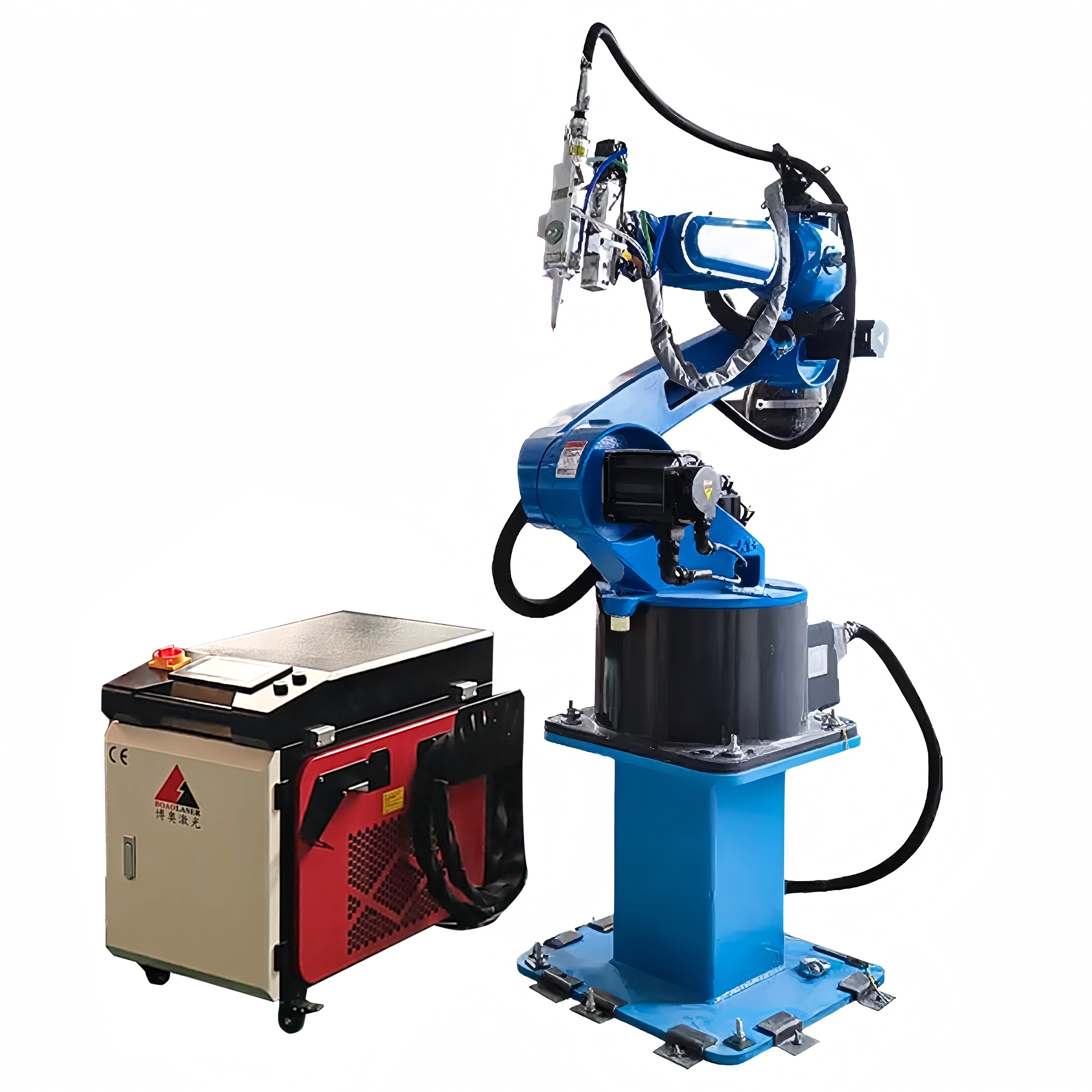

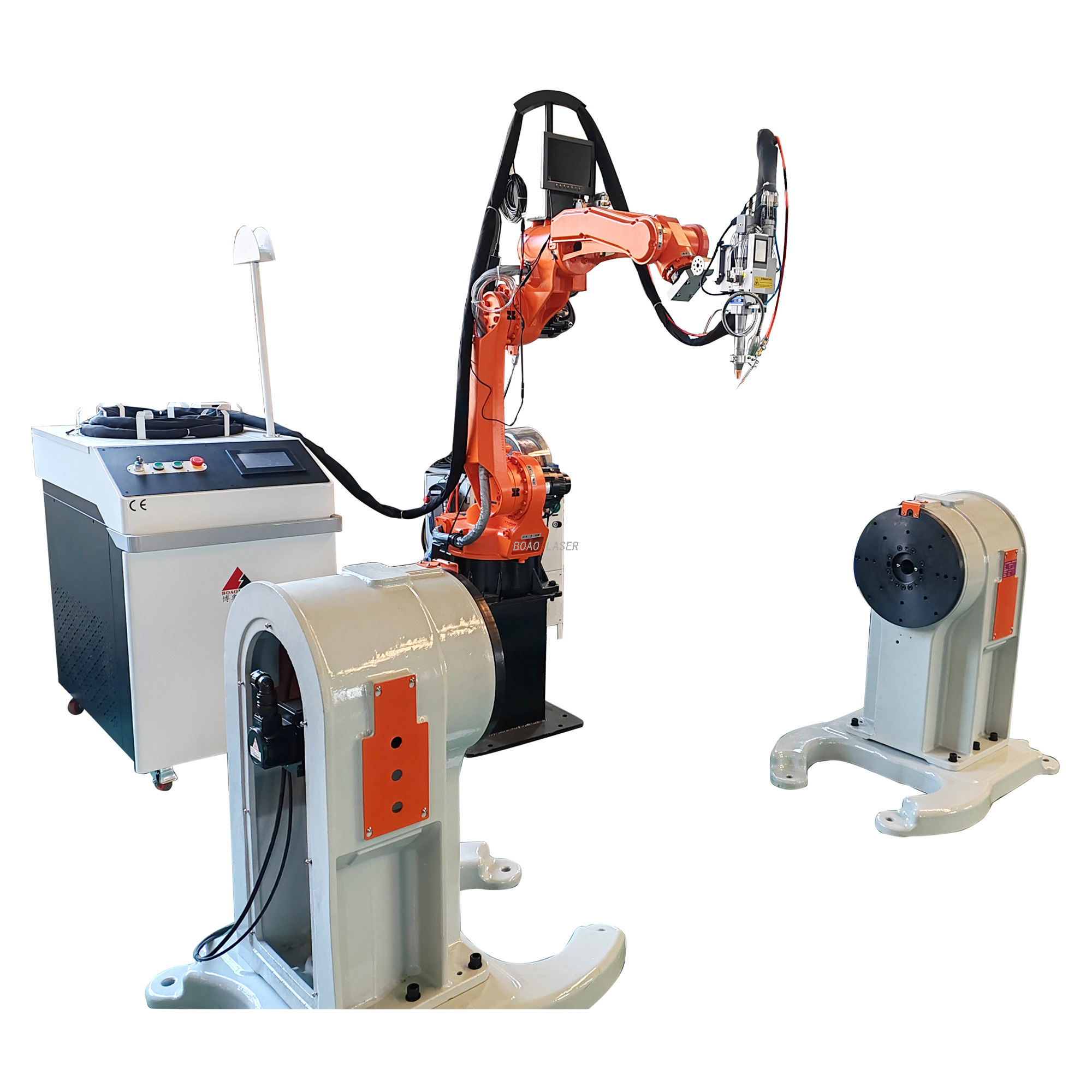

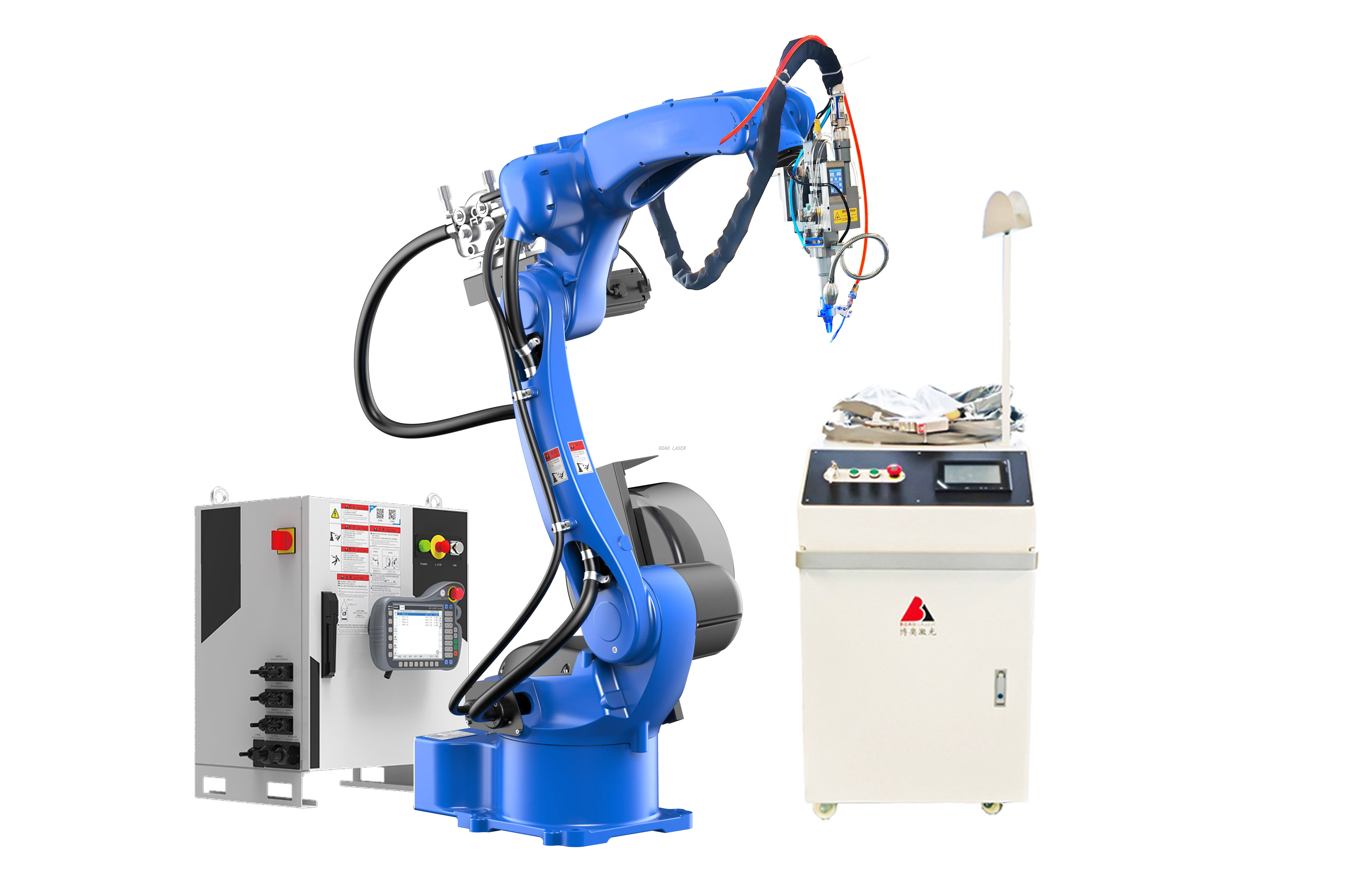

Our Robot Laser Welding Machine Design
This machine is fiber transmission laser welding machine , it equip the Robot Arm’ stretch size is 1400mm or as customers request. This kind of laser welding machines can automatic and faster welding any shape products or complex designing welding application etc. BOAO laser not only just only produce the laser equipments and but also can designing the whole set of laser solution for the customers directly.
This machine adopts 1064nm pulse laser as light source. It utilizes laser radiation to heat the surface of workpiece. The surface heat transmits to the internal part of the workpiece by heat conduction effect. The width, energy, peak power and repetition frequency parameters of the laser pulse can be controlled to melt the workpiece and then form melt pool. Because of its unique advantages, this technology has been successfully applied into micro & small metal parts precision welding and welding thin metal sheet.
Laser beam is transmitted through flexible optical fiber and then is projected on the weld joint through the welding head.
Laser welding is a non-contact welding process, no need of pressure infusion. Just required inert gas to prevent the melt pool from being oxidized. Precision Electric Slide.
Our Robot Laser Welding Machine Design
This machine is fiber transmission laser welding machine , it equip the Robot Arm’ stretch size is 1400mm or as customers request. This kind of laser welding machines can automatic and faster welding any shape products or complex designing welding application etc. BOAO laser not only just only produce the laser equipments and but also can designing the whole set of laser solution for the customers directly.
This machine adopts 1064nm pulse laser as light source. It utilizes laser radiation to heat the surface of workpiece. The surface heat transmits to the internal part of the workpiece by heat conduction effect. The width, energy, peak power and repetition frequency parameters of the laser pulse can be controlled to melt the workpiece and then form melt pool. Because of its unique advantages, this technology has been successfully applied into micro & small metal parts precision welding and welding thin metal sheet.
Laser beam is transmitted through flexible optical fiber and then is projected on the weld joint through the welding head.
Laser welding is a non-contact welding process, no need of pressure infusion. Just required inert gas to prevent the melt pool from being oxidized. Precision Electric Slide.
Laser Power | Laser Source / Laser Welding Head | Laser Melting PenetrationThickness Reference |
1000W
Welding wire: 0.6-0.8mm | 1: CW FIBER LASER with Wobble Laser Welding Head. 2.Laser Spot Diameter Adjustable Scope: 0-4 mm 3.Welding Wires Feeding System With it.
| Steel -3 mm, Welding Speed: 15-20mm/s. Titanium Alloy-3mm , Welding Speed:30-40mm/s. Brass -2mm , Welding Speed:25-35mm/s. AL-1.5mm , Welding Speed: 10-20mm/s. |
1500W Welding wire: 1-1.2 mm | Steel -4mm , Welding Speed : 15-20mm/s Titanium Alloy-3mm, Welding Speed: 45-55mm/s Brass -2mm, 45-50mm/s AL -2mm , 25-35mm/s | |
2000W Welding wire: 1.4-1.6 mm | Steel –5mm , Welding Speed:25-30mm/s Titanium Alloy-4mm, Welding Speed :15-20mm/s Brass -2mm , Welding Speed:40-45mm/s AL -2mm , Welding Speed: 35-40mms | |
3000W Welding wire: 1.4-1.6 mm | Steel –8mm ,Welding Speed: 30mm/s Titanium Alloy-6mm, Welding Speed:20mm/s Brass -4mm , Welding Speed:45mm/s AL -4mm , Welding Speed: 40mms |
Laser Power | Laser Source / Laser Welding Head | Laser Melting PenetrationThickness Reference |
1000W
Welding wire: 0.6-0.8mm | 1: CW FIBER LASER with Wobble Laser Welding Head. 2.Laser Spot Diameter Adjustable Scope: 0-4 mm 3.Welding Wires Feeding System With it.
| Steel -3 mm, Welding Speed: 15-20mm/s. Titanium Alloy-3mm , Welding Speed:30-40mm/s. Brass -2mm , Welding Speed:25-35mm/s. AL-1.5mm , Welding Speed: 10-20mm/s. |
1500W Welding wire: 1-1.2 mm | Steel -4mm , Welding Speed : 15-20mm/s Titanium Alloy-3mm, Welding Speed: 45-55mm/s Brass -2mm, 45-50mm/s AL -2mm , 25-35mm/s | |
2000W Welding wire: 1.4-1.6 mm | Steel –5mm , Welding Speed:25-30mm/s Titanium Alloy-4mm, Welding Speed :15-20mm/s Brass -2mm , Welding Speed:40-45mm/s AL -2mm , Welding Speed: 35-40mms | |
3000W Welding wire: 1.4-1.6 mm | Steel –8mm ,Welding Speed: 30mm/s Titanium Alloy-6mm, Welding Speed:20mm/s Brass -4mm , Welding Speed:45mm/s AL -4mm , Welding Speed: 40mms |
Laser welding machine can weld stainless steel, aluminum, carbon steel, spring steel, copper, brass, galvanized sheet, rare metals, metal sheets and pipes for batteries, solar panel, denture parts, PCB panel, eyeglasses frames, jewelry, mold repairing, motor, automotive parts, hardware, aerospace, phone shell, electric heat pipe, small flange, super capacitors, household appliances, cooker, cooking utensils, kitchenware, medical equipment, electronics etc.
Laser welding has the superiority of small welding spot diameter, narrow weld seam and excellent welding effect. After welding, there is no need further treatment or merely simple further treatment. Furthermore, laser welding is applicable to a large scale of materials and can weld various different materials. There advantages enable laser welding be widely used in varieties of precision welding processes.
Laser welding machine can weld stainless steel, aluminum, carbon steel, spring steel, copper, brass, galvanized sheet, rare metals, metal sheets and pipes for batteries, solar panel, denture parts, PCB panel, eyeglasses frames, jewelry, mold repairing, motor, automotive parts, hardware, aerospace, phone shell, electric heat pipe, small flange, super capacitors, household appliances, cooker, cooking utensils, kitchenware, medical equipment, electronics etc.
Laser welding has the superiority of small welding spot diameter, narrow weld seam and excellent welding effect. After welding, there is no need further treatment or merely simple further treatment. Furthermore, laser welding is applicable to a large scale of materials and can weld various different materials. There advantages enable laser welding be widely used in varieties of precision welding processes.
