BFW
Boao
Hand held Pulse Fiber laser Welding Machine

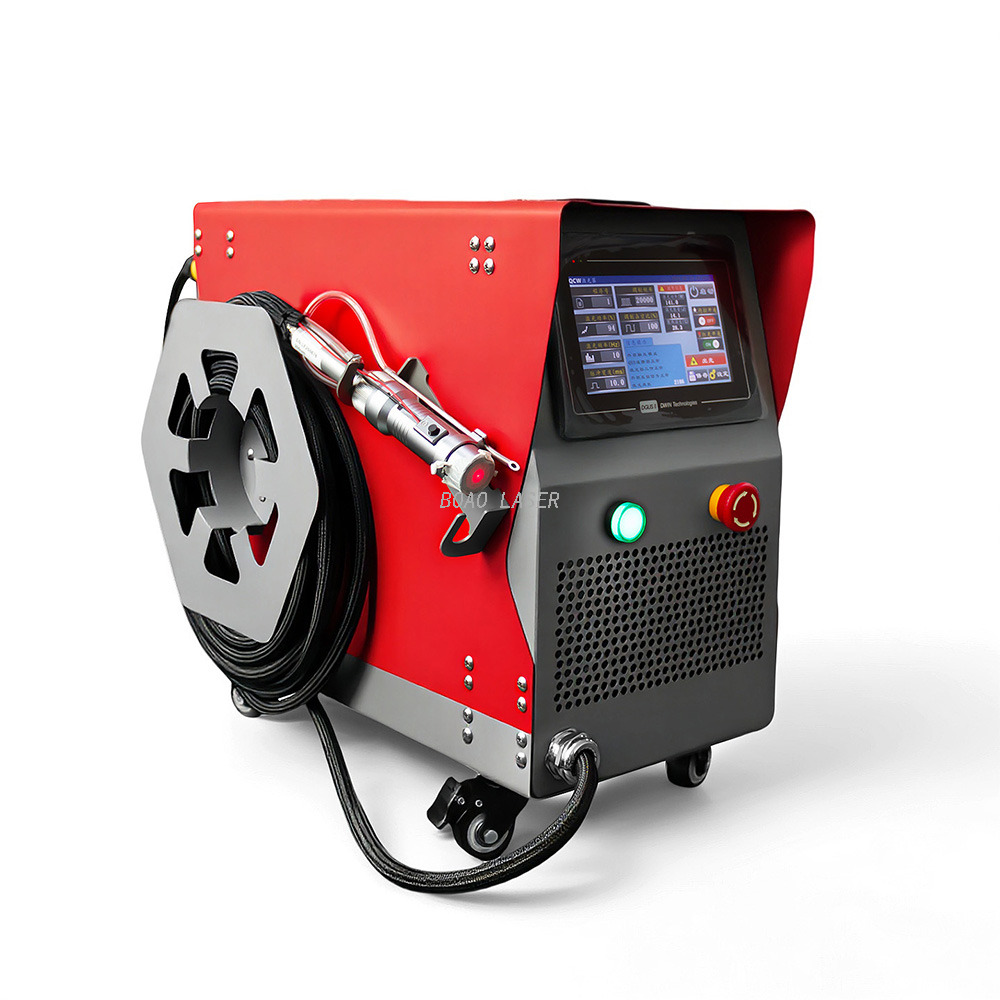

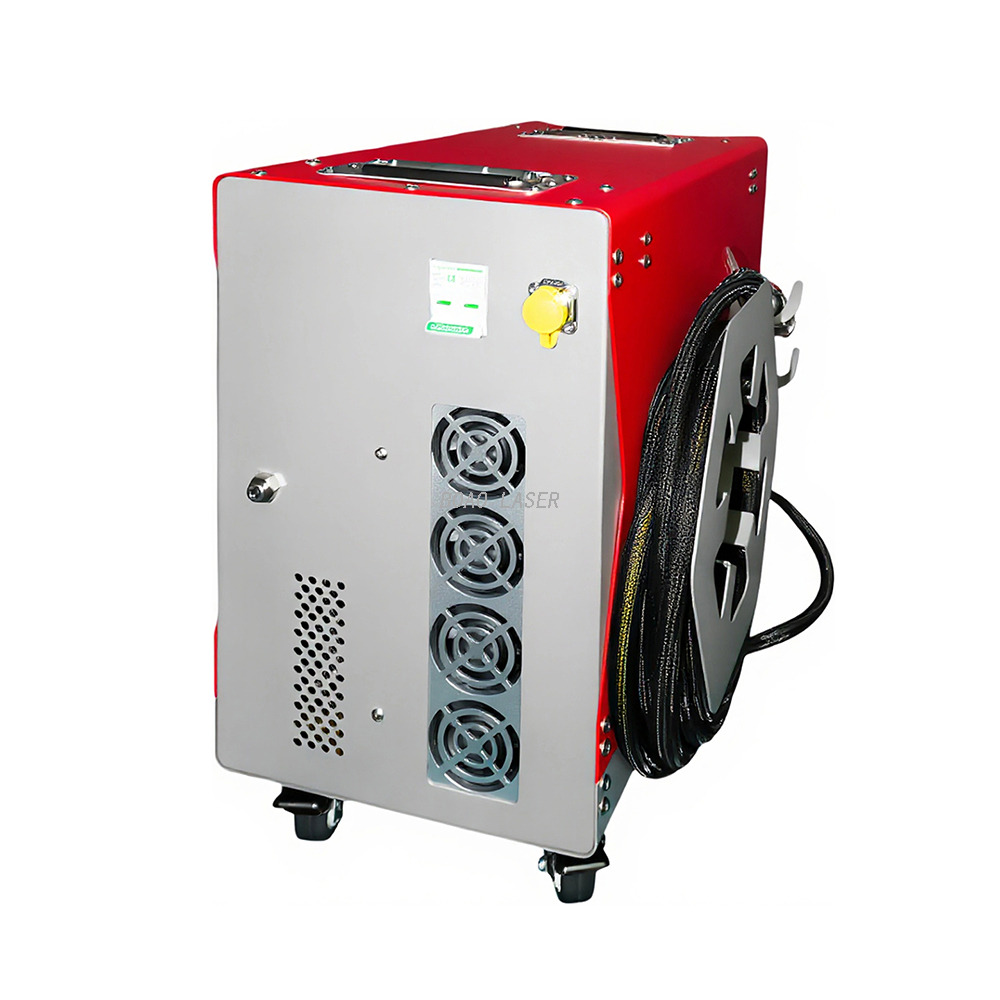

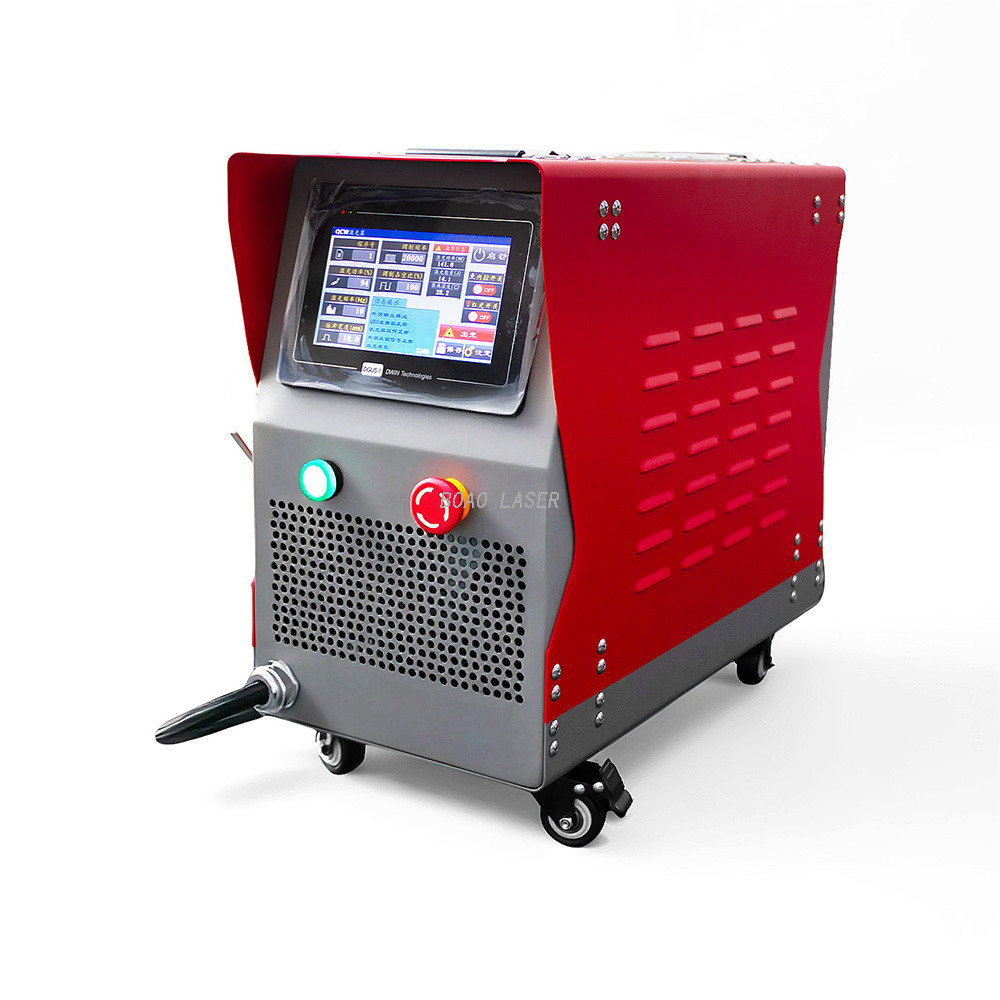

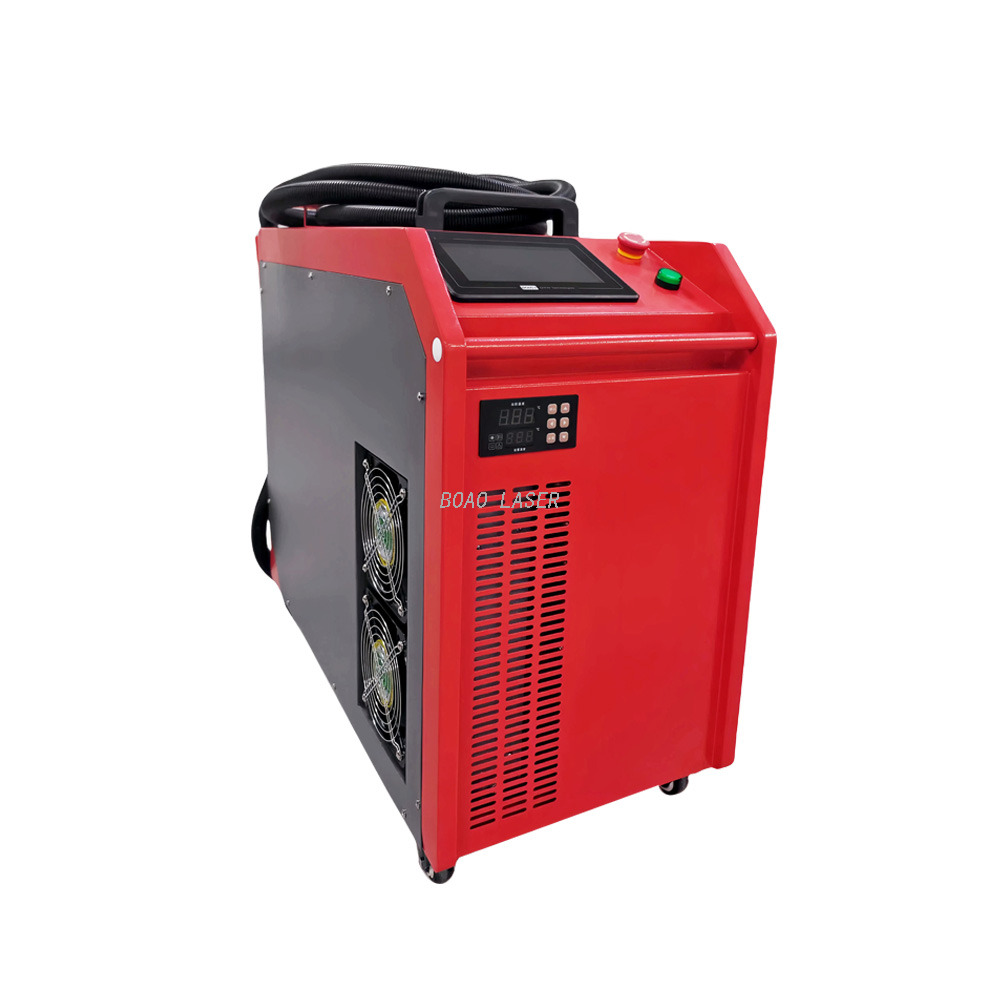

➤ Machine Photo
➤ Product Introduction

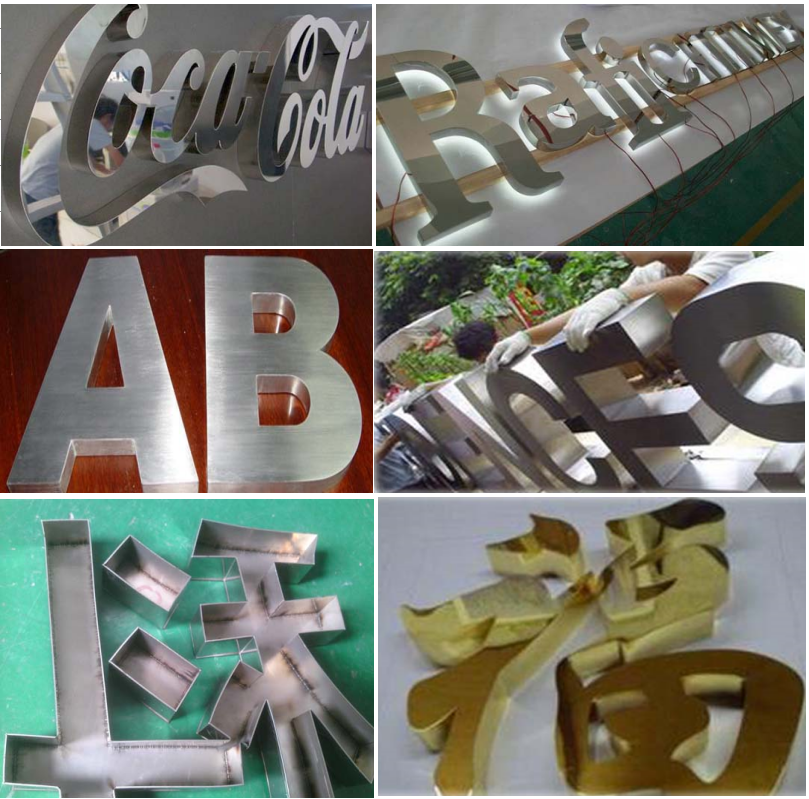

The QCW fiber laser handheld welding machine is mainly used for thin plate welding. It has low heat output, no deformation, and minimal impact on the backside. It is mainly applied to the welding of thin plates of stainless steel, aluminum plates, copper plates, or advertising characters.
➤ Main Features
By adopting the Handheld Laser head, the Laser Power Supply, the Internal-Circle Cooling System(wind or water chiller), the Control System, the Numerical Control System and the Integrative Design of the Workbench, this device offers you a compact structure and smart appearance with convenient operations and stable performance, which occupies only a small place. It uses a power switch and allows you to select the output power, frequencies, the pulse width and other parameters of the Laser through the touch panel. It also has an auto-protective function that can protect it from mistaken operations and temperature excursion.
With the remote control unit or through the touch panel, you can select the output power, frequencies, the pulse width and other parameters of the Laser, set up the speed and control the directions (forward, backward, left or right) by which the Workbench moves, so that it can produce a flat and tidy welding line or welding point to optimize the results.
The driving method of the numerical control Workbench: Imported PLC control promises stable and highly accurate operations of the workbench.
➤ Applicable materials and fields
This device not only serves as the special packaging equipment of battery production, but also can be used in the welding of metal materials, such as relay, sensor and various electronic components, etc.
Hand held Pulse Fiber laser Welding Machine
➤ Machine Photo
➤ Product Introduction
The QCW fiber laser handheld welding machine is mainly used for thin plate welding. It has low heat output, no deformation, and minimal impact on the backside. It is mainly applied to the welding of thin plates of stainless steel, aluminum plates, copper plates, or advertising characters.
➤ Main Features
By adopting the Handheld Laser head, the Laser Power Supply, the Internal-Circle Cooling System(wind or water chiller), the Control System, the Numerical Control System and the Integrative Design of the Workbench, this device offers you a compact structure and smart appearance with convenient operations and stable performance, which occupies only a small place. It uses a power switch and allows you to select the output power, frequencies, the pulse width and other parameters of the Laser through the touch panel. It also has an auto-protective function that can protect it from mistaken operations and temperature excursion.
With the remote control unit or through the touch panel, you can select the output power, frequencies, the pulse width and other parameters of the Laser, set up the speed and control the directions (forward, backward, left or right) by which the Workbench moves, so that it can produce a flat and tidy welding line or welding point to optimize the results.
The driving method of the numerical control Workbench: Imported PLC control promises stable and highly accurate operations of the workbench.
➤ Applicable materials and fields
This device not only serves as the special packaging equipment of battery production, but also can be used in the welding of metal materials, such as relay, sensor and various electronic components, etc.
Technical Parameters | ||||
MODEL NO | BFW300 | BFW700 | BFW800 | BFW800S |
MODE | Pulse fiber | Pulse fiber | Pulse fiber | Pulse fiber |
AVERAGE LASER POWER | 300W | 700W | 800W | 800W |
PEAK LASER POWER | 1000W | 1500W | 2000W | 2000W |
WAVELENGTH (nm) | 1080nm±5nm | 1080nm±5nm | 1080nm±5nm | 1080nm±5nm |
FREQUENCY (Hz) | 1-300Hz | 1-300Hz | 1-300Hz | 1-300Hz |
MODULATION FREQUENCY(Hz) | 1-5000Hz | 1-5000Hz | 1-5000Hz | 1-5000Hz |
PULSE ENERGY (J) | 10J/10ms | 15J/10ms | 18J/10ms | 20J/10ms |
FIBER CORE | 100μm(Customizable) | |||
FIBER CABLE (M) | 5M/10M | |||
COOLING MODE | Wind | Wind | Water | |
SIZE (mm) | 547*300*533mm | 547*300*533mm | 852*372*710mm | 852*372*710mm |
WEIGHT(KG) | 32kg | 32kg | 85kg | 100kg |
